Description
Diameter D Ø12 mm
Tolerance H712.000–12.018 mm
Shank StraightØ12 mm
Material Solid carbide (VHM)

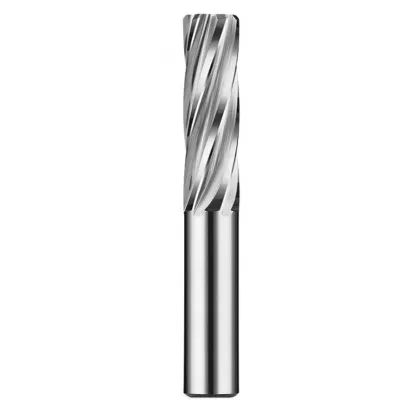

Machine reamer Ø12 H7 solid carbide (VHM) — technical data
Solid carbide (VHM) finishing reamer, solid carbide (VHM) straight shank
| Technical Data | |
|---|---|
| Cutting diameter D | Ø12 H7 (12.000–12.018 mm) |
| Shank diameter (d9) | 12 mm |
| Flute length l | 40 mm |
| Overall length L | 75 mm |
| Number of teeth Z | 6 |
| Type | Solid carbide (VHM) finishing reamer, straight shank |
| Material | Solid carbide (VHM, cemented carbide) |
What H7 tolerance means for a diameter of 12 mm
| Class | Deviations [mm] | Dimension [mm] | |
|---|---|---|---|
| H6 | +0.011 / 0 | 12.000 – 12.011 | |
| H7 | +0.018 / 0 | 12.000 – 12.018 | SELECTED |
| H8 | +0.027 / 0 | 12.000 – 12.027 | |
| H9 | +0.043 / 0 | 12.000 – 12.043 |
The reamed hole falls within the tolerance zone 12.000–12.018 mm (ISO 286-2) — an accuracy level typical of dowel pin holes and sliding fits, among other applications.
Cutting data for the Ø12 H7 solid carbide (VHM) machine reamer
Indicative values Ø12 mm Z = 6
| Material group (ISO 513) | Vc [m/min] | fz [mm/tooth] | n [rpm] Ø12 | f [mm/min] Z=6 |
|---|---|---|---|---|
| PStructural and carbon steel | 8–10 | 0.12–0.16 | 212 | 153 |
| MStainless steel | 2–3 | 0.12–0.16 | 53 | 38 |
| KCast iron | 3–5 | 0.14–0.16 | 80 | 67 |
| NAluminum and light alloys | 12–16 | 0.16–0.20 | 318 | 305 |
Vc — cutting speed, fz — feed per tooth (catalog values for HSS, selected for a diameter of Ø12 mm). Spindle speeds were calculated for the lower end of the range: n = (Vc × 1000) ÷ (π × D), feed rate per minute f = fz × Z × n for Z = 6. Start with the lower values and adjust according to the material and clamping rigidity. For a cemented carbide (VHM) reamer, the cutting speed can be increased relative to HSS values after trials.
You may also need: Cutting parameters calculator
Applications of the Ø12 H7 solid carbide (VHM) machine reamer for metal
Hole finishing to H7 tolerance
Machine reamer fi 12 H7 VHM — solid finishing reamer made of cemented carbide (VHM) with a straight shank, designed for precision hole finishing to tolerance H7. Carbide provides high wear resistance and dimensional stability even at higher cutting speeds and in series production. The tool face has a lead-in chamfer of ~45° for centered entry, while the guide margins on the cutting edges keep the tool aligned with the hole axis.
The Ø12 H7 carbide machine reamer removes the stock left after drilling and brings the hole to its final size within the tolerance zone H7 (12.000–12.018 mm). The tool aligns the hole axis, improves roundness and cylindricity, and reduces surface roughness to approx. Ra 0.4–1.6 µm. 6 unequally spaced cutting edges reduce vibration and machining marks. This diameter range is common in sliding fits: pins, shafts, plain bushings, and cylindrical dowel pin holes in housings. It works well as a reamer for steel, cast iron, and nonferrous metals — cemented carbide retains its hardness and edge sharpness much longer than high-speed steel.
Workpiece materials
✓Structural and carbon steel
✓Gray cast iron
✓Aluminum and nonferrous alloys
▲Stainless steels — reduced cutting speed, generous coolant supply
✗Hardened steels above 45 HRC
Guidelines for correct reaming
- Pre-drilled hole Ø11.75 mm — stock allowance of 0.25 mm on the diameter.
- Drill the initial hole perpendicular to the surface and with minimal runout — a finishing reamer follows the existing hole and will not correct its misalignment.
- Use coolant (emulsion or cutting oil); cast iron can be machined dry.
- Withdraw the tool without reversing its rotation — reverse rotation damages the cutting edges.
Frequently asked questions — Ø12 H7 reamer
Drill a hole Ø11.75 mm — stock allowance of approx. 0.25 mm on the diameter. Too little allowance causes the material to be compressed rather than cut; too much overloads the cutting edges and reduces hole accuracy.
Cemented carbide (VHM) is harder and more rigid than high-speed steel — it maintains its size and edge sharpness much longer and also permits higher cutting speeds. It is the first-choice tool for series production; HSS remains economical for one-off jobs.
The hole falls within the tolerance zone 12.000–12.018 mm, and surface roughness is approx. Ra 0.4–1.6 µm — this accuracy is sufficient for sliding fits and dowel pin holes.
