Die BSW 1-8 WS DIN-EN 22568

FWP FWP
2196
Thread size (inch): 116 sizes of this die
€12.30 tax inc.

Net price: €10.00

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

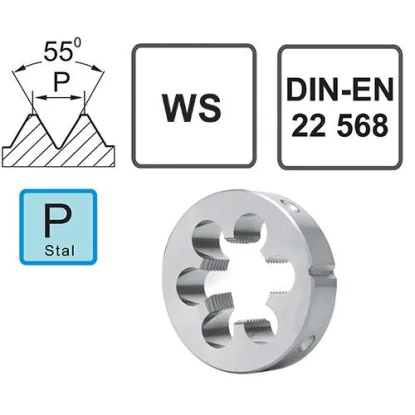

Technical data die BSW 1-8

- notched thread d1 - 1-8,

- thread pitch - 8 turns per inch,

- external diameter d2 - 55 mm,

- thickness h1 - 22 mm,

- number of chip holes - 5,

- required diameter of the shaft - 25,27 mm.

Die Whitworth BSW 1-8

Die 1-8 Whitworth inch BSW for cutting external threads. Type die NHWa, angle 55 degrees, nut 1.75. Inch threads are used in pipe connections, installations and fittings. The offered die have been manufactured entirely from specialized tool steel marked WS. This is a steel with exceptional mechanical properties. First of all, tools made of this steel are extremely durable and hard. They are characterized by increased resistance to harsh working conditions, as well as the ability to increase the speed of processing. Even at the resulting temperature (up to 600 degrees C), die Whitworth's tools are not subject to mechanical damage such as fracture, chipping, blunting, cracking. This not only results in a reduction of working time, but also the possibility of reducing the overall cost of machining. Proposed to you die are suitable for threading workpieces made of materials of class P1.2 - P1.3.

Product accessories

Die stock 55X22

Reference: 836867 In stock < 10 items

€20.53

€25.25 brutto
