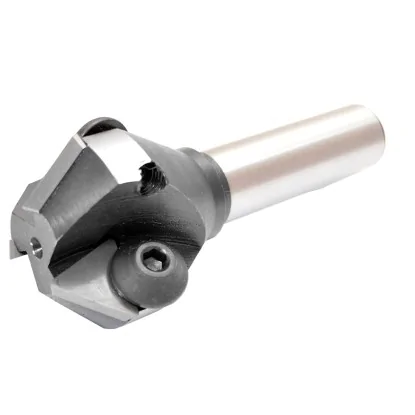

Countersink holder 20x48 mm - 45 degrees Varel
search
  • Countersink holder 20x48 mm - 45 degrees Varel
  • Countersink holder 20x48 mm - 45 degrees Varel - nr. 1
Varel

Indexable countersink 20x48 mm L-110 mm Varel

Varel Varel
0000012830
Angle: 45°5 sizes of this countersink
€45.32 tax inc.

Net price: €36.84

Instant Shipping
W magazynie: 10-100 szt.
W magazynie: 10-100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

Angle to the axis45 degrees
Diameter range20–48 mm
Inserts3 × TPMN 220408
Length110 mm

Indexable countersink 20x48 mm – 45° chamfer mill for TPMN inserts

Technical data and dimensions – 20 mm Weldon shank

Technical data
Cutting edge angle to the axis45° (90° cone)
Minimum diameter D220 mm
Maximum diameter D148 mm
Max. cutting depth14 mm
Flute length l40 mm
Overall length L110 mm
Shank diameter d20 mm, Weldon
Number of inserts Z3
InsertTPMN 220408
Insert clampingTP-22 clamp, L5 key
ManufacturerVarel
Varel indexable countersink 20x48 mm – dimensional drawing, diameters 20 and 48 mm, angle 45°
Varel indexable countersink 20x48 mm – dimensional drawing, diameters 20 and 48 mm, angle 45°

Indexable countersink 20x48 mm Varel cuts recesses for M20 and M24 countersunk screw heads and chamfers hole edges. It cuts with three TPMN 220408 inserts over diameters from 20 to 48 mm. Each insert has three cutting edges. A dull edge is replaced by indexing the insert by 120°, without sharpening the tool.

The 45° angle is measured between the insert edge and the tool axis. As they rotate, the inserts sweep a 90° cone. This matches the head angle of a metric countersunk screw. For every millimeter of plunge depth, the diameter increases by 2 mm. Feed per revolution is distributed over 3 cutting edges. The 20 mm shank has a Weldon flat for the holder screw, which locks the tool in the holder.

Applications – countersunk screw seat and slot chamfers

Operations with the 90° countersink

The same insert edges cut the screw head recess and the chamfer. The countersink also works as a 45° chamfer mill. Only the tool path and plunge depth change. The countersink machines holes and slots wider than 20 mm.

90° seat for a DIN 7991 screw head machined with a 20x48 indexable countersink

Countersunk screw seat

The inserts sweep a 90° cone, matching the screw head specified in DIN 7991. The countersink feeds axially into the clearance hole to the calculated depth. It accommodates M20 and M24 heads with diameters from 36 to 39 mm. The head sits flush with the workpiece surface or 0.1 mm below it.

Chamfering both upper edges of a slot in a single pass with the 20x48 countersink

Chamfer on both slot edges

The tool is guided along the center of a slot from 20 to 48 mm wide. The inserts chamfer both upper edges in a single pass. Chamfer width is set by the plunge depth. This method is used to chamfer keyway and guideway edges.

Screw head recess – selection and depth

Which screws fit and how deep to plunge

The countersink cuts from 20 mm to 48 mm in diameter. A complete recess requires two conditions. The clearance hole must be larger than 20 mm. The screw head must be less than 48 mm in diameter.

Diagram of a 90° recess for a countersunk screw head – hole, plunge depth, and 20–48 mm range
Diagram of a 90° recess for a countersunk screw head – hole, plunge depth, and 20–48 mm range

Calculator: Z-axis plunge depth for recess diameter

With a 90° cone, each millimeter of downward travel adds 2 mm to the diameter. Plunge depth is measured from the workpiece surface to the insert corners at a diameter of 20 mm. Plunge depth = (recess diameter − 20 mm) ÷ 2, e.g., (39 − 20) ÷ 2 = 9.5 mm for an M24 head.

DIN 7991 countersunk screw
Z-axis plunge depth
Z 9.50 mm
The M24 head will sit flush with the surface
▲
Clearance hole wider than 20 mm

The countersink cuts from a diameter of 20 mm. In a clearance hole wider than 20 mm, e.g., 22 mm for M20, the recess is complete and the head seats fully.

TPMN 220408 inserts – clamp instead of a screw

Triangular insert without a hole to ISO 1832

T indicates a triangle, so the insert has three cutting edges. P indicates a 11° clearance angle: the insert has positive geometry. M is the tolerance class, and N indicates an insert without a hole or chip breaker. 22 indicates an edge of approx. 22 mm, 04 a thickness of 4.76 mm, and 08 a corner radius of 0.8 mm.

The insert without a hole is held by a TP-22 clamp tightened with an L5 key. The clamp presses down on the insert from above and pushes it against the seat walls. The countersink is sold without inserts; 3 pcs are required for a complete set.

Changing edges step by step

1Loosening the clamp

Key: L5

2Indexing the insert

Rotation: 120°

3Cleaning the insert seat

Chips: removed

4Tightening the clamp

Clamp: TP-22

✓Remaining inserts

Repeat: steps 1–4

Clamp and key according to the Varel catalog

All inserts are indexed at the same time because they cut on the same cone. A chip under an insert shifts its cutting edge and changes the recess diameter, so the insert seat must be cleaned before each installation.

Cutting data – starting values

Cutting speed and feed per tooth – conservative ranges

The values are based on conservative milling ranges with a 45° entering angle according to ISO 513. Start at the lower limit and increase the values while monitoring the chips and spindle sound.

Workpiece materialCutting speed vc [m/min]Feed per tooth fz [mm]
P Structural and alloy steel150–2200.10–0.22
M Stainless steel80–1400.08–0.18
K Gray cast iron180–3000.10–0.28

Calculating spindle speed and feed rate – M24 recess in steel

Spindle speed is calculated for the largest diameter engaged in the material, here the 39 mm head. Spindle speed = 1000 × cutting speed 150 m/min ÷ (3.14 × diameter 39 mm) ≈ 1220 rpm. Feed rate = feed per tooth 0.10 mm × 3 inserts × 1220 rpm ≈ 360 mm/min. These two values are entered in the machine tool program.

Higher spindle speeds and lighter pressure work well for countersinking. Low speeds with heavy pressure cause vibration. When machining stainless steel, coolant protects the hole edge from overheating.

Indexable countersink 20x48 mm Varel cuts 90° recesses for M20 and M24 heads. It also chamfers holes wider than 20 mm and slot edges. It cuts with three TPMN 220408 inserts over diameters from 20 to 48 mm. The 20 mm Weldon shank and 110 mm length fit standard milling tool holders.

Questions about the 20x48 indexable countersink

Recess, inserts, depth, CNC program

For 90° countersunk screws to DIN 7991: M20 and M24. Their head diameters are 36 and 39 mm, and their clearance hole diameters are 22 and 26 mm. The calculator above gives the plunge depth for each of these screws.

TPMN 220408 inserts: triangular, without a hole, with a 0.8 mm corner radius. They are held by a TP-22 clamp tightened with an L5 key.

Three TPMN 220408 inserts, one in each seat. Each insert has three edges. A set of 3 inserts provides three usable edge positions.

Enter a 90° countersink with a tip diameter of 20 mm in the tool table. Measure the tool height to the insert corners. Plunge depth = (head diameter − 20 mm) ÷ 2, plus approx. 0.1 mm.
