Description
MATERIALHSS
STANDARDDIN 6518
RADIUSR2.5 mm
CUTTING EDGESZ = 4
HSS corner rounding cutter R2.5 mm — technical specifications
Concave form cutter NFRk DIN 6518 — dimensions, material and tool specifications

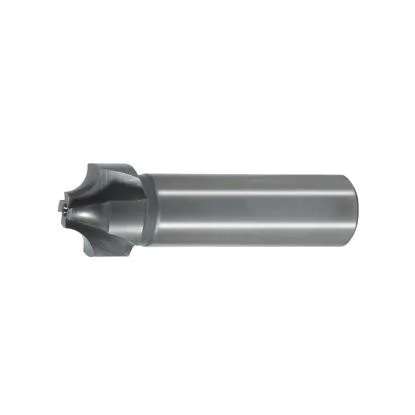

Concave corner rounding cutter R2.5 mm type NFRk from Varel — a form cutter made of high-speed steel (HSS) HSS (hardness 64 HRC) for milling quarter-round profiles in accordance with the standard DIN 6518. The 4-flute design ensures stable operation and a good surface finish. The Weldon straight shank Ø10 mm with a flat allows secure clamping in collet chucks.
RADIUS R 2.5 mm
CUTTER DIAMETER Ø11.1 mm
LENGTH L 60 mm
SHANK D Ø10 mm
| TECHNICAL DATA | |
|---|---|
| Cutter type | Concave quarter-round 2.5 mm DIN 6518 |
| Radius R | 2.5 mm |
| Cutter diameter | Ø11.1 mm |
| Diameter D1 | 6 mm |
| Overall length L | 60 mm |
| Shank length I | 41.4 mm |
| Shank diameter d | Ø10 mm |
| Number of cutting edges Z | 4 |
| Material | HSS (high-speed steel) |
| Standard | DIN 6518 |
| Shank type | Weldon straight shank |
Applications of the R2.5 mm corner rounding cutter
Workpiece materials and compatibility by ISO material group
The R2.5 mm HSS concave quarter-round radius cutter is designed to form rounded edges with a radius of R2.5 mm on the edges of structural and tooling components. Typical applications include machining profiles on decorative components, furniture fittings and machine parts, and wherever technical documentation requires a precise quarter-round edge. The concave profile of the NFRk cutter produces a convex rounded edge on the workpiece.
Cutting data for the HSS corner rounding cutter R2.5
| Mat. group | Material | Vc [m/min] | fz [mm/tooth] | n [rpm] | F [mm/min] |
|---|---|---|---|---|---|
| P 1.1 | Structural steel ≤500 N/mm² | 28 | 0.046 | 803 | 148 |
| P 1.5 | Alloy steel 850–1000 N/mm² | 16 | 0.038 | 459 | 70 |
| M 2.1 | Austenitic stainless steel | 18 | 0.046 | 516 | 95 |
| M 2.3 | Martensitic stainless steel | 12 | 0.038 | 344 | 53 |
| K 3.1 | Gray cast iron | 22 | 0.062 | 631 | 157 |
| K 3.3 | Ductile cast iron | 28 | 0.046 | 803 | 148 |
| N 6.2 | Brass, bronze | 28 | 0.046 | 803 | 148 |
| N 7.1 | Aluminum — Al-Si alloys | 80 | 0.030 | 2294 | 277 |
| N 7.2 | Pure aluminum | 200 | 0.046 | 5735 | 1060 |
| S 8.1 | Thermoplastics | 96 | 0.038 | 2753 | 421 |
Machining tip
For profile milling with a corner rounding cutter, use down milling (climb milling) for a better surface finish. For soft materials (Al, Cu), use higher cutting speeds and lower feed per tooth to avoid built-up edge (BUE).
Advantages of the HSS DIN 6518 form cutter
Process of manufacturing an HSS cutter
1 HSS material
hardness 64 HRC
2 CNC grinding
profile R2.5 mm
3 Weldon shank
clamping Ø10
✓ Quality control
standard DIN 6518
Frequently asked questions
The R2.5 mm HSS cutter is suitable for machining structural and unalloyed steels (groups 1.1–1.8), austenitic and martensitic stainless steels (2.1–2.3), cast iron (3.1–3.5), copper alloys (6.1–6.4), aluminum and its alloys (7.1–7.4) and plastics (8.1–8.3). Materials hardened above 45 HRC require cemented carbide tools.
The NFRk concave quarter-round radius cutter with a radius of R2.5 mm leaves a convex rounded profile on the workpiece edge. A convex NFRx radius cutter would instead cut a concave groove with the same radius. The choice depends on whether the rounded profile must be convex (NFRk) or concave (NFRx). Dimensional standard: DIN 6518.
For a cutter with a Ø10 mm Weldon shank, the optimal solution is a collet chuck ER32 (clamping range 2–20 mm) with an ER collet matching the shank diameter. ER collet chucks provide concentric clamping with radial runout below 0.01 mm, resulting in a better surface finish during profile milling. The ER collet distributes clamping force evenly around the entire shank circumference, eliminating the risk of tool deformation.
