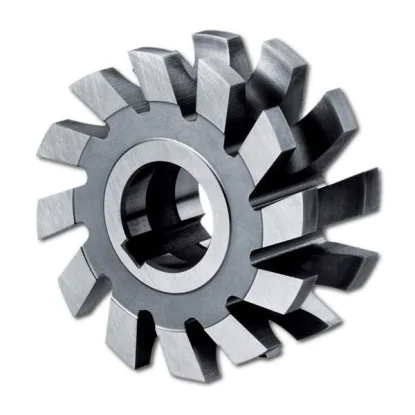

Concave milling cutter R16 DIN 855-A HSS

Technical data of radial concave milling cutter R16

- radius of the milling cutter R16 mm,

- working diameter D - 125 mm,

- bore diameter d - 32 mm,

- width of milling cutter L - 50 mm

- number of teeth Z - 10

Concave milling cutter semicircular R16

Modern radial concave milling cutter R16 slip-on disc cutter according to the dimensional standard DIN 855 A, with a radius of 16 mm. This is a NFRb type cutter, mounted on a milling or lathe mandrel, designed to make a circular shape with a predetermined radius. It is suitable for making external radii. The slip-on circular milling cutters found in our store have a hole shank and a wedge collector. They are made to the highest requirements, from modern HSS (High Speed Steel). Thanks to this steel, radial concave milling cutters R16 perform well in tasks that require high resistance to heavy cutting conditions and also high resistance to any mechanical damage. HSS milling cutters are very hard and durable and also resistant to potential damage to the blades (breakage, cracking, chipping, chipping). The cutters are recommended for high-performance machining at increased speeds. The cutters are suitable for conventional machine tools (milling machines and lathes) as well as computer-controlled numerical control machine tools.
