Technical data of insert for metric internal threads 0.5-3.0 mm
| Technical data | |
|---|---|
| Side length L | 16 mm |
| Thread profile | 60 degrees |
| Insert type | Metric right-hand internal thread |
| Thread pitch range P | 0.5 to 3.0 mm |
| Thread profile | iSO partial |
| Carbide grade BMA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |

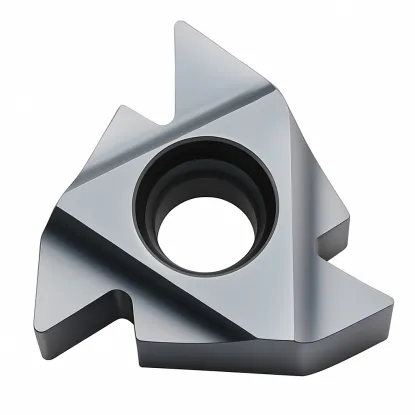

Carbide insert metric thread lathe 16 IR AG60 BMA Horn is a high-quality cutting tool designed for precision turning of external threads with metric triangular profile, complying with the ISO standard. The range of supported thread pitch is from 0.5 to 3 mm, making this insert a versatile solution for many manufacturing applications.
16 IR AG60 BMA Horn is made of tungsten carbide and PVD-coated, which guarantees high wear resistance and cutting edge stability even under heavy loads. Thanks to the optimized A60 geometry, a clean thread outline is achieved while maintaining low cutting resistance. The product is used both in automatic lathes and on conventional and CNC lathes.
- Versatility of applications - the possibility of making many types of metric threads without changing the tool.
- High tool life - modern coating increases abrasion resistance and improves process stability.
- Precise thread turning - the A60 geometry ensures accurate reproduction of the thread outline in accordance with the ISO standard.
The product is recommended for companies that value durability, quality and repeatability of processes in machining.
Cutting parameters for insert 16 IR AG60 Horn
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm [TPI zwoje] | 0,5-[48] | 0,8-[32] | 1,0-[24] | 1,25-[20] | 1,5-[16] | 1,75-[14] | 2,0-[12] | 2,5-[10] | 3,0-[8] |
|---|---|---|---|---|---|---|---|---|---|
| Number of transitions | 3-6 | 4-7 | 4-9 | 6-10 | 5-11 | 9-12 | 6-13 | 7-15 | 8-17 |
Formula for thread outline height [mm]
Height of thread outline H1 [mm]
H1=0,54127*P
where:
- H1 - height of thread outline given in [mm]
- P - thread pitch given in [mm]
Frequently asked questions
For which turning knives fits carbide insert?
Carbide insert is compatible with most standard turning knives for right-hand external threads, equipped with a socket for inserts of 16 mm.
What kind of threads can be turned with this insert ?
Carbide insert allows cutting metric threads with a pitch of 0.5 mm to 3 mm, which corresponds to the range from M3 to M27.
What does incomplete thread outline mean?
Incomplete outline means that carbide insert forms only the profile of the thread - it does not machine the nominal diameter, which must be prepared in advance.
