Description
Technical data of carbide cutter fi 12
| Technical data | |
|---|---|
| Working diameter d1 | 12 mm |
| Shank diameter d2 | 12 mm |
| Length of working part l2 | 30 mm |
| Overall length l1 | 75 mm |
| Number of blades | 3 |
Cutting parameters of carbide cutter fi 12 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 60-70 | 0,059-0,084 | 1592 | 282 |
| M | Stainless steel | 50 | 0,012 | 1327 | 48 |
| K | Cast iron | 87-100 | 0,047-0,061 | 2309 | 326 |
| N | Aluminum | 150 | 0,047 | 3981 | 561 |
| H | Hardened materials | 40 | 0,031 | 1062 | 99 |

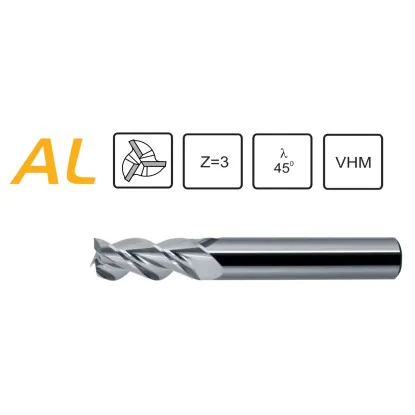

Pitchfork milling cutter fi 12 VHM
VHM millingcutter fi 12mmD-12 Z-3 cylindrical face full carbide, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide 12 VHM millingcutter, widia shank, diameter D-12 Z-3, with smooth cylindrical shank DIN6535 HA. It is a cutter used for professional machining of hard and hard-to-machine alloy steels, cast steel, cast iron, stainless steel, acid-resistant and heat-resistant steel, as well as surface-hardened materials. Carbide milling cutters fi 12 of this type are suitable for drilling, copying, making channels and grooves. They are produced from high-performance VHM carbide and are characterized by high cutting efficiency compared to milling cutters made from high-speed steel. The cutters we offer are recommended for various types of machine tools, including both conventional machine tools and more rigid machine tools. Their advantage is increased resistance to harsh cutting conditions, including the high temperatures created during high-speed machining.
