Description
| Technical data | |
|---|---|
| ISO designation | TTGNR 20X20 K16 |
| Shank height (h) | 20 mm |
| Shank width (b) | 20 mm |
| Overall length (L) | 125 mm |
| Functional overhang (f) | 26 mm |
| Entering angle (κr) | 90° |
| Clearance angle | 0° (negative) |
| Clamping system | ISO — top and through-hole clamping (T) |
| Insert type | TNMG 1604rr |
| Cutting direction | R — right-hand (L version available) |
| Manufacturer | Smoxh |
20×20 mm indexable turning tool for a TNMG insert

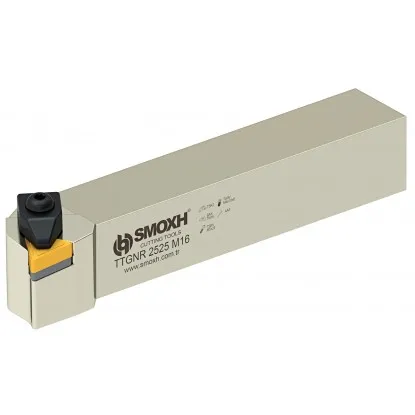

Turning tool TTGNR 20X20 K16 is an indexable turning tool designed for external turning on conventional and CNC lathes. The shank, with a cross section of 20×20 mm and a length of 125 mm, provides the rigidity required for industrial machining. The geometry with an entering angle of 90° allows facing and turning along a shoulder.
In the top and hole clamping system (T), the clamp secures the TNMG 1604rr insert from above and through its hole. The negative geometry of the 60° triangular insert with 6 cutting edges is suitable for roughing and medium machining, providing high cutting edge strength and cost efficiency through its double-sided design. The tool is compatible with TNMG 16 inserts in various carbide grades — select the grade to match the workpiece material.
What the individual letters in the ISO designation mean





Cutting operations:
| ▸ | Facing — the 90° angle provides uniform cutting of the end face |
| ▸ | Turning along shoulders — the right angle allows machining 90° corners |
| ▸ | Machining various materials — negative TNMG geometry provides a stronger cutting edge |
| ▸ | Turning steps and flanges — machining diameter transitions |
| ▸ | CNC production runs — repeatable cutting edge positioning and quick replacement |
Package contents for TTGNR 20X20 K16
Package contents:
| ✓ | Tool body TTGNR 20X20 K16 | 1 pcs |
| ✓ | Top clamp with screw | 1 pcs |
| ✓ | Hex key for insert replacement | 1 pcs |
| ✗ | TNMG 1604rr cutting insert (sold separately) | — |
TNMG 1604rr
The cutting insert is not included in the set — must be purchased separately. TNMG insert. Negative geometry means that the insert is double-sided and has 6 cutting edges, providing a stronger cutting edge and twice as many edges as a single-sided insert.
Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.
Instructions for top and through-hole clamping (T)
Loosen the clamp screw 2-3 turns
Remove chips and debris
Position in the seat under the clamp
Torque 3.5–5.0 Nm
Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.
Checks before starting work:
| ▸ | Tool overhang — do not exceed 1.5× the shank height without support |
| ▸ | Cutting edge height — set the cutting edge at spindle centerline height |
| ▸ | Insert seat condition — check that the contact surface is not damaged or worn |
| ▸ | Secure clamping — the insert must have no play in the seat |
| ▸ | Indexing — when an edge wears out, rotate the insert to a fresh edge (6 edges in total) |
Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.
This tool accepts inserts TNMG 1604rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.
The entering angle of 90° provides facing perpendicular to the axis and turning along shoulders. Suitable for machining flanges, steps and right-angle corners on the workpiece.
The TNMG insert has negative geometry (clearance angle 0°), which means it is double-sided with 6 cutting edges. When one edge wears out, rotate or flip the insert to use the next edge — this significantly reduces tooling cost per part.
Reference: 11266 In stock > 10 items
€6.31 brutto
