Description
DIAMETER Ø16 mm
LENGTH 170 mm
INSERT WNMG 0604rr
ANGLE κr 95°
Technical specifications of the S16 MWLNR-06 boring bar
| Technical data | |
|---|---|
| ISO designation | S16 MWLNR-06 |
| Shank diameter (d) | Ø16 mm |
| Effective height (h) | 15 mm |
| Overall length (L) | 170 mm |
| Functional overhang (f) | 11 mm |
| Min. bore diameter (D_min) | Ø22 mm |
| Entering angle (κr) | 95° |
| Clearance angle | 0° (negative) |
| Clamping system | ISO — combination (M) |
| Insert type | WNMG 0604rr |
| Cutting direction | R — right-hand (L version available) |
| Shank material | Steel (S) |
| Manufacturer | Smoxh |

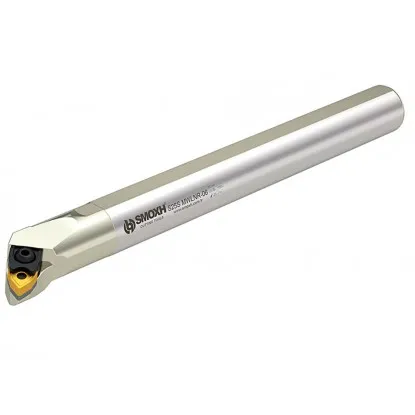

S16 MWLNR-06 boring bar – for internal turning of bores
Internal turning tool for machining bores from Ø22 mm
Boring bar S16 MWLNR-06 is an indexable boring bar designed for longitudinal turning and roughing and medium machining of bores with diameters from 22 mm. The round steel shank with a diameter of Ø16 mm and a length of 170 mm provides cutting stability even with greater tool overhang. The geometry with an entering angle of 95° allows turning along the wall with simultaneous light facing.
In the combination clamping system (M), the WNMG 0604rr insert is held simultaneously by a top clamp and a pin in its hole. The negative geometry of the 80° trigon insert with 6 cutting edges is suitable for roughing and medium machining, providing high cutting edge strength and cost efficiency thanks to its double-sided design. The boring bar is compatible with WNMG 06 inserts in various carbide grades — select the grade to match the workpiece material.
Decoding the MWLNR designation of the S16 MWLNR-06 boring bar
What the individual letters in the ISO designation mean
Decoding the designation MWLNR
M
CLAMPING
Combination (M)
The top clamp and pin secure the insert simultaneously
W
INSERT SHAPE
80° trigon 80°
WNMG insert — negative, double-sided, 6 edges (3 per side)
L
ENTERING ANGLE
κr = 95°
Longitudinal turning + facing
N
CLEARANCE ANGLE
α = 0° (neg.)
Negative geometry — double-sided inserts, edges on both sides
R
DIRECTION
Right-hand (R)
Feed to the left — from the tailstock toward the spindle
Shank: Ø16 mm (S16P, steel) · Insert: WNMG 0604rr
Typical applications of the S16 MWLNR-06 boring bar
Cutting operations:
| ▸ | Longitudinal boring — enlarging and finishing cylindrical bores from Ø22 mm |
| ▸ | Roughing and medium machining of bores — negative WNMG geometry provides a strong cutting edge; for finishing, select an insert with a finishing chip breaker |
| ▸ | Internal taper turning — bearing seats, internal chamfers, Morse tapers |
| ▸ | Light facing — the 95° angle allows machining the face inside the bore |
| ▸ | CNC production runs — repeatable cutting edge positioning and quick insert replacement in the holder |
Included
S16 MWLNR-06 package contents
Package contents:
| ✓ | Boring bar body S16 MWLNR-06 | 1 pcs |
| ✓ | Combination clamp (clamp + pin) | 1 pcs |
| ✓ | Hex key for insert replacement | 1 pcs |
| ✗ | WNMG 0604rr cutting insert (sold separately) | — |
Compatible WNMG 0604rr insert
WNMG 0604rr
The cutting insert is not included in the set — must be purchased separately. WNMG insert. Negative geometry means that the insert is double-sided and has 6 cutting edges, providing a stronger cutting edge and twice as many edges as a single-sided insert.
Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.
Installing and replacing the insert in the S16 MWLNR-06 boring bar
Instructions for combination clamping (M)
Insert replacement procedure step by step
1 Loosen the clamp
Loosen the clamping screw 2-3 turns
2 Clean the insert seat
Remove chips and debris
3 Install the insert
Fit onto the pin and press down
4 Tighten the clamp
Torque 0.6–1.2 Nm
Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.
Checks before starting work:
| ▸ | Tool overhang — do not exceed 4×d (64 mm) without support; use vibration damping for greater overhang |
| ▸ | Cutting edge height — set the cutting edge at spindle centerline height |
| ▸ | Insert seat condition — check that the contact surface is not damaged or worn |
| ▸ | Secure clamping — the insert must have no play in the seat |
| ▸ | Indexing — when an edge wears out, rotate the insert to a fresh edge (6 edges in total) |
Note: Use internal coolant (through the spindle) for boring whenever possible. When machining without coolant, reduce cutting parameters by 20–30%. Long tool overhang promotes vibration — if vibration occurs, reduce the depth of cut and increase the feed.
Frequently asked questions — S16 MWLNR-06
The minimum bore diameter is Ø22 mm. In smaller bores, the tool head interferes with the machined wall, preventing proper cutting.
For a steel shank of Ø16 mm, the recommended maximum overhang without damping is 4×d, or 64 mm. Above this value, vibration may occur — reduce the depth of cut or use a vibration-damped boring bar.
The WNMG insert has negative geometry (clearance angle 0°), which means it is double-sided with 6 cutting edges. When one edge wears out, rotate or flip the insert to use the next edge — this significantly reduces tooling cost per part.
