Description

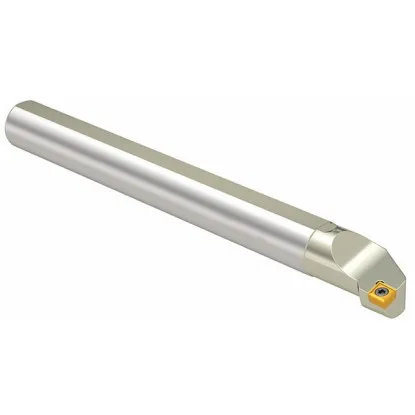

Turning tool folding S 12H SCLCL 06 from Akko for CCM multi-tool plate. 0602rr
Technical data of the left-hand boring lathe knife
- width of the shank d - 12 mm,
- width d1 - 11 mm,
- width h - 11 mm,
- length of working part l - 25 mm,
- total length L - 100 mm,
- working height f - 09 mm,
- minimum diameter of the hole Dmin - 16 mm,
- buy in set - Carbide insert CCMT 060204
Turning tool boring bar S 12 SCLCL 06 left
Insert clamping system - "S"
Most external turning knives, positive or negative geometry boring knives. Single-sided indexable inserts clamped on the surface of the tapered-arc bore with a countersunk screw. The "S" system is the most common system of fixing indexable inserts. It is characterized by simplicity, high reliability, very good repeatability of the blade position and the ability to mount inserts of small dimensions. The main area of application of knives with inserts clamped in the "S" system is finishing of external surfaces and surfaces of holes (especially holes with small diameters), but they are also used for roughing.
* Carbide insert the cutting tool shown in the picture is not included in the lathe knife, it must be purchased separately
Product accessories
Carbide insert CCMT 060204 H6310 Horn
Reference: 0000005754 In stock > 10 items
€3.16
€3.88 brutto
