CUTTING WIDTH1.5 mm
CUTTING DEPTH T MAX15 mm
MAX. BAR DIAMETERØ30 mm
INSERT · 2 EDGESMGMN 150

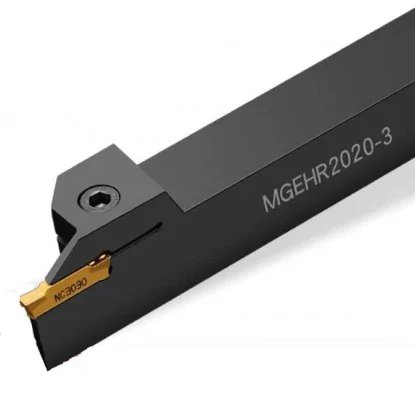

Parting tool 20X20 1.5 mm T15 Varel
Technical data for the holder for Korloy MGMN 150 inserts
| Technical data | |
|---|---|
| Designation | MGEHR 2020-1.5 |
| Type | holder for parting and external grooving |
| Shank height h | 20 mm |
| Shank width B | 20 mm |
| Overall length L | 125 mm |
| Dimension S (to the insert edge) | 20.3 mm |
| Cutting depth T max | 15 mm |
| Max. parting diameter D max | Ø30 mm |
| Insert pocket | MGMN 150 (width 1.5 mm) |
| Hand | R – right-hand |
MGEHR 2020-1.5 – parting and grooving with an MGMN 150 insert
What this tool can do, screw clamping and a double-edged insert
The Varel MGEH holder series also includes 1.5 mm parting tool MGEHR 2020-1.5 for parting off workpieces and cutting grooves. The cutting depth of 15 mm allows bars up to Ø30 mm to be parted off. The MGMN 150 insert is held by a screw clamp from above, allowing replacement without removing the tool from the tool post.
The head forms a thin blade 15 mm long, which determines the cutting depth T max. Behind the blade, the head widens to the full shank width and can no longer enter the 1.5 mm groove. This sets the limit: the tool parts off bars up to Ø30 mm, or twice T max.
The MGMN 150 insert is double-edged: when one edge becomes dull, rotate it by 180° and cut with the other end.
The insert edge projects 0.3 mm beyond the side of the shank (S = 20.3 mm with B = 20 mm). When cutting close to the chuck, the cutting edge engages while the shank stays clear of the workpiece face. The 20x20 mm shank with a length of 125 mm is a common size for tool posts on general-purpose and CNC lathes.
What this tool can do – parting and grooving
Parting – cutting a part off a bar
The blade enters the bar all the way to the axis and the part separates. Bars up to Ø30 mm, a 1.5 mm kerf, and material loss limited to the insert width.
Cutting external grooves
A 1.5 mm groove between shaft shoulders or a retaining ring groove at the end of a journal, up to 15 mm deep. Cut wider grooves with several adjacent passes.
Screw clamping from above
The screw pulls the head's flexible lip down against the insert. The insert can be replaced without removing the tool from the tool post.
Double-edged insert
MGMN 150 has a cutting edge at both ends. One edge dull? Rotate the insert by 180° and use the other.
Material loss: 1.5 mm
Each parting cut turns only 1.5 mm of bar into chips. For 100 parts, this consumes 5 cm less bar than a tool with a 2 mm insert.
Dimensions and cutting reach – dimensional drawing
Side view and top view
HEIGHT h
20 mm
WIDTH B
20 mm
LENGTH L
125 mm
DIMENSION S
20.3 mm
T max is measured from the insert tip to the head shoulder. A groove shallower than 15 mm can also be cut in a bar larger than Ø30 mm.
The left panel of the diagram shows the end of the cut: the insert tip is on the bar axis, and the head shoulder touches its surface. The right panel shows cutting edge height: set the edge on the centerline to within ±0.1 mm. Below the centerline, a pip remains; above the centerline, the cutting edge rubs against the material.
Decoding the MGEHR 2020-1.5 designation
The four parts of the MGT system designation, read from the left
Designation: MGEHR 2020-1.5
MGEH
Element 1
holder type
holder type
For parting
MGEH
MGEH
External grooving and parting holder for the MGT insert system, with screw-operated top clamping.
R
Element 2
hand
hand
Right-hand
R
R
Standard configuration with the workpiece clamped in the chuck to the left of the tool. The mirror-image version is designated MGEHL.
2020
Element 3
shank
shank
20x20 mm
2020
2020
The first two digits indicate height h, and the next two indicate width B. Fits a tool post for 20 mm tools.
-1.5
Element 4
insert width
insert width
1.5 mm
-1.5
-1.5
The number after the hyphen is the insert width in millimeters. The pocket accepts MGMN 150 inserts, and T max is 15 mm (bars up to Ø30 mm).
MGT system catalog convention, not ISO 5608 · dimensions: h 20 · B 20 · L 125 · S 20.3 mm
Parting data – speeds and feeds for a 1.5 mm insert
Starting values with coolant; refer to the insert grade data sheet for definitive data
The values apply to coated MGMN 150 inserts used with coolant. Use the higher speeds with rigid clamping and short overhang.
| Workpiece material | Vc [m/min] | fn [mm/rev] |
|---|---|---|
| PCarbon steel | 150–200 | 0.05–0.12 |
| PAlloy steel | 130–180 | 0.05–0.12 |
| PHardened steel | 90–130 | 0.05–0.10 |
| MStainless steel | 130–160 | 0.05–0.12 |
| KCast iron | 150–210 | 0.05–0.12 |
Starting spindle speed: n = (1000 × Vc) / (π × D). For a Ø30 mm carbon steel bar at Vc = 180 m/min: n = (1000 × 180) / (3.14 × 30) ≈ 1910 rpm. At constant spindle speed, the cutting speed decreases to zero at the centerline, so enable constant surface speed (G96) with a spindle speed limit on a CNC lathe.
▲
Operating limitations
Do not part off bars larger than Ø30 mm: the shoulder of the head will contact the material before the cutting edge reaches the centerline. Keep overhang from the tool post as short as possible. Over the final 2 mm before the centerline, reduce the feed by as much as 75% and direct coolant straight into the cut.
Installing the MGMN 150 insert in 3 steps
1Loosen
the clamping screw by 2–3 turns
2Seat
clean the pocket, slide the insert in until fully seated
3Tighten
and check that the cutting edge is on the lathe centerline ±0.1 mm
✓Ready
parting off bars up to Ø30 mm
Cutting insert not included
COMPATIBLE WITH:
| ✓ | MGMN 150 parting inserts (Korloy MGT system) – width 1.5 mm, length 16 mm, height 3.5 mm |
| ✓ | Other sizes in the -1.5 series available: MGEHR 1616-1.5 (T max 15 mm) |
Varel parting tools for MGMN 150 inserts
MGEHR 1616-1.516x16 mm | L 100 mm | T max 15 mm | Ø30 mmR right-hand
←
←
Inserts from other grooving systems (DGN, GTN, KGM) require different pockets and do not fit this holder. The 1.5 mm MGEHR 2020-1.5 parting tool cuts off carbon steel, alloy steel, stainless steel, and cast iron, provided the insert grade matches the material. The limit remains a Ø30 mm bar. With parting off hardened steel reduce the cutting speed to 90–130 m/min. In hydraulic applications, it cuts grooves for sealing rings and parts off bushings from bar stock.
Frequently asked questions
An MGMN 150 parting insert (Korloy MGT system) with a width of 1.5 mm, length of 16 mm and height of 3.5 mm. It is double-ended, so each insert provides two cutting edges. DGN, GTN and KGM inserts do not fit this pocket.
Ø30 mm, or twice the cutting depth T max = 15 mm. Larger bars require a holder with a greater cutting depth T max. Grooves shallower than 15 mm can also be cut on larger diameters.
The right-hand R version is standard: the workpiece is held in the chuck to the left of the tool. Choose the left-hand L version when the workpiece is clamped on the opposite side of the tool or when the tool post arrangement on your lathe requires it. Both versions have identical dimensions.
No. The tool is sold without a cutting insert, and the MGMN 150 insert must be purchased separately. Inserts in different carbide grades fit the same holder, allowing one tool to machine steel, stainless steel and cast iron.
