Description
CUTTING WIDTH4 mm
CUTTING DEPTH T MAX22 mm
MAX. BAR DIAMETERØ44 mm
INSERT · 2 EDGESMGMN 400

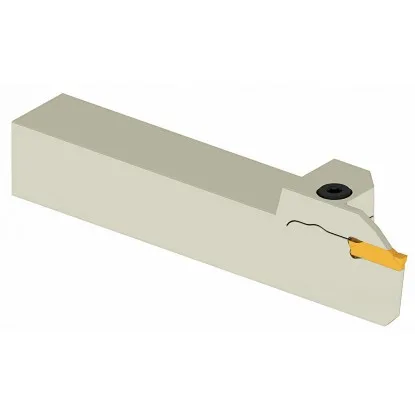

Left-hand parting tool 25X25 4 mm T22 Smoxh
Technical data for the holder for Korloy MGMN 400 inserts
| Technical data | |
|---|---|
| Designation | BDKT L 2525 K4C T22 |
| Type | holder for parting and external grooving |
| Shank height h | 25 mm |
| Shank width B | 25 mm |
| Overall length L | 150 mm |
| Dimension S (to the insert edge) | 25.4 mm |
| Cutting depth T max | 22 mm |
| Max. parting diameter D max | Ø44 mm |
| Insert pocket | MGM. 4C (MGMN 400, width 4 mm) |
| Hand | L – left-hand (right-hand version: SM09561) |
BDKT-L 2525 K4C T22 – operation with MGMN inserts
What this tool can do, screw clamping and a double-edged insert
Left-hand parting tool 4 mm BDKT-L 2525 K4C T22 (Smoxh) parts off bars up to Ø44 mm and cuts external grooves. It uses MGMN 400 carbide inserts, clamped from above by the flexible jaw of the head. The BKTV M6x25 screw tightens the jaw, and you can replace the insert in a dozen or so seconds.
The insert is supported by the narrow blade of the head, 22 mm long — this is the cutting depth T max. Beyond this point, the body widens to the shank width, so only the blade fits into the 4 mm slot. This limits the tool to parting off bars up to Ø44 mm, or twice T max.
The dimension S = 25.4 mm means that the cutting edge projects 0.4 mm beyond the side of the 25 mm wide shank. This allows cutting close to the chuck jaws without the shank rubbing against the workpiece face. The 25x25 mm shank with a length of 150 mm provides the rigidity required by a narrow cutting edge in a confined groove.
The MGMN 400 insert has two cutting edges at opposite ends. When the first becomes dull, rotate the insert by 180° and use the second.
Applications of the 4 mm parting tool – parting off workpieces and grooving
Parting – cutting a part off a bar
The blade enters the bar all the way to the axis and the part separates. Bars up to Ø44 mm, a 4 mm kerf, and material loss limited to the insert width.
Cutting external grooves
A 4 mm groove between shaft shoulders or a retaining ring groove at the end of a journal, up to 22 mm deep. Cut wider grooves with several adjacent passes.
Screw clamping from above
The BKTV M6x25 screw draws the flexible lip of the head against the insert. Change the insert with an AA5 key without removing the tool from the tool post.
Double-edged insert
MGMN 400 has a cutting edge at both ends. One edge dull? Rotate the insert by 180° and use the other.
Material loss: 4 mm
Each parting cut turns only 4 mm of bar into chips. For 100 parts, this consumes 10 cm less bar than a tool with a 5 mm insert.
Dimensions and cutting reach – dimensional drawing
Side view and top view
HEIGHT h
25 mm
WIDTH B
25 mm
LENGTH L
150 mm
DIMENSION S
25.4 mm
Measure T max from the insert tip to the point where the blade transitions into the wider head. Grooves up to 22 mm deep can also be cut in bars larger than Ø44 mm.
At the end of the cut, the insert tip is at the bar centerline and the shoulder of the head touches the bar surface. The second panel shows the cutting edge height: the edge must be on the centerline within ±0.1 mm. An edge below center leaves a pip; above center, it rubs against the material.
Designation decoder for BDKT L 2525 K4C T22
Five elements of the Smoxh code, read from the left
Designation: BDKT L 2525 K4C T22
BDKT
Element 1
holder type
holder type
For parting
BDKT
BDKT
Smoxh series for external grooving and parting with screw clamping. The counterpart for internal grooving is designated BIKT.
L
Element 2
hand
hand
Left-hand
L
L
A mirror image of the right-hand version with the same dimensions. The R version has code SM09561.
2525
Element 3
shank
shank
25x25 mm
2525
2525
The first two digits indicate height h, and the next two indicate width B. Fits a tool post for 25 mm tools.
K4C
Element 4
insert pocket
insert pocket
MGM. 4C
K4C
K4C
K – Korloy MGMN insert system, 4 – cutting width of 4 mm. Versions K2C…K8C accept inserts from 2 to 8 mm.
T22
Element 5
depth
depth
T max 22 mm
T22
T22
Blade length from the insert tip to the head shoulder. Maximum parting diameter is 2 × T max = Ø44 mm.
Smoxh catalog convention, not ISO 5608 · dimensions: h 25 · B 25 · L 150 · S 25.4 mm
Parting data – speeds and feeds for a 4 mm insert
Starting values with coolant; refer to the insert grade data sheet for definitive data
The table provides starting values for coated MGMN 400 inserts with coolant. Select the upper speed range when clamping is rigid and tool overhang is short.
| Workpiece material | Vc [m/min] | fn [mm/rev] |
|---|---|---|
| PCarbon steel | 120–200 | 0.07–0.15 |
| PAlloy steel | 130–180 | 0.07–0.15 |
| PHardened steel | 70–130 | 0.07–0.12 |
| MStainless steel | 120–160 | 0.07–0.15 |
| KCast iron | 130–210 | 0.07–0.15 |
Starting spindle speed: n = (1000 × Vc) / (π × D). For a Ø44 mm carbon steel bar at Vc = 170 m/min: n = (1000 × 170) / (3.14 × 44) ≈ 1230 rpm. At constant spindle speed, the cutting speed decreases to zero at the centerline, so enable constant surface speed (G96) with a spindle speed limit on a CNC lathe.
▲
Operating limitations
Do not part off bars larger than Ø44 mm: the shoulder of the head will contact the material before the cutting edge reaches the centerline. Keep overhang from the tool post as short as possible. Over the final 2 mm before the centerline, reduce the feed by as much as 75% and direct coolant straight into the cut.
Installing the MGMN 400 insert in 3 steps
1Loosen
the BKTV M6x25 screw with the wrench AA5, 2–3 turns
2Seat
clean the pocket, slide the insert in until fully seated
3Tighten
and check that the cutting edge is on the lathe centerline ±0.1 mm
✓Ready
parting off bars up to Ø44 mm
Cutting insert not included
COMPATIBLE WITH:
| ✓ | MGMN 400 parting inserts (Smoxh: MGM. 4C) – width 4.0 mm, length 21 mm, height 4.8 mm |
| ✓ | BKTV M6x25 clamping screw (spare part) and AA5 wrench |
| ✓ | Right-hand version BDKT-R 2525 K4C T22 (SM09561) with the same dimensions |
Smoxh parting tools and boring bars for MGMN 400 inserts
BDKT R/L 2020 K4C T2020x20 mm | L 125 mm | T max 20 mm | Ø40 mmR right-hand
←L left-hand
→
←L left-hand
→
BDKT R/L 2020 K4C T T2020x20 mm | L 125 mm | T max 20 mm | Ø40 mmR right-hand
←L left-hand
→
←L left-hand
→
BDKT R/L 2020 K4C T2520x20 mm | L 125 mm | T max 25 mm | Ø50 mmR right-hand
←L left-hand
→
←L left-hand
→
BDKT R/L 2525 K4C T T2225x25 mm | L 150 mm | T max 22 mm | Ø44 mmR right-hand
←L left-hand
→
←L left-hand
→
BDKT R/L 2525 K4C T2525x25 mm | L 150 mm | T max 25 mm | Ø50 mmR right-hand
←L left-hand
→
←L left-hand
→
BDKT R/L 2525 K4C T T2525x25 mm | L 150 mm | T max 25 mm | Ø50 mmR right-hand
←L left-hand
→
←L left-hand
→
BDKT R/L 2525 K4C T4025x25 mm | L 170 mm | T max 40 mm | Ø80 mmR right-hand
←L left-hand
→
←L left-hand
→
BDKT R/L 3232 K4C T2232x32 mm | L 170 mm | T max 22 mm | Ø44 mmR right-hand
←L left-hand
→
←L left-hand
→
BIKT R/L 20 K4C T6Ø20 mm | Ømin 26 mm | L 170 mm | T max 6 mmR right-hand
←L left-hand
→
←L left-hand
→
BIKT R/L 25 K4C T7Ø25 mm | Ømin 32 mm | L 200 mm | T max 7 mmR right-hand
←L left-hand
→
←L left-hand
→
BIKT R/L 32 K4C T8Ø32 mm | Ømin 40 mm | L 250 mm | T max 8 mmR right-hand
←L left-hand
→
←L left-hand
→
BIKT R/L 40 K4C T10Ø40 mm | Ømin 50 mm | L 300 mm | T max 10 mmR right-hand
←L left-hand
→
←L left-hand
→
BIKT R/L 50 K4C T15Ø50 mm | Ømin 65 mm | L 350 mm | T max 15 mmR right-hand
←L left-hand
→
←L left-hand
→
Inserts from other grooving systems, such as DGN, GTN or KGM, do not fit the pocket. The left-hand 4 mm BDKT-L 2525 K4C T22 parting tool cuts carbon, alloy and stainless steel as well as cast iron, provided the insert grade matches the material. The limit remains a Ø44 mm bar. With parting off hardened steel reduce the speed to 70–130 m/min. In metalworking and fabrication shops, it parts off pins, spacers and bushings from bar stock.
Frequently asked questions
An MGMN 400 parting insert (in the Smoxh catalog: MGM. 4C) with a width of 4.0 mm, length of 21 mm, and height of 4.8 mm. It is double-ended, so one insert provides two cutting edges. DGN, GTN, and KGM inserts do not fit this pocket.
Ø44 mm, which is twice the cutting depth T max = 22 mm. For thicker bars, choose the 2525 K4C T25 version (up to Ø50 mm) or T40 (up to Ø80 mm). Grooves shallower than 22 mm can also be cut on larger diameters.
The left-hand L version is a mirror image of the right-hand tool (code SM09561) with identical dimensions. Choose it when the workpiece is clamped on the opposite side of the tool or when the tool post arrangement on your lathe requires it. With the workpiece in the chuck to the left of the tool, the R version is standard.
A pip remains when the cutting edge is not on the lathe centerline. Set it within ±0.1 mm and check that the insert is fully seated in the pocket. Over the final 2 mm before the centerline, reduce the feed by as much as 75%.
