Description
Diameter D Ø89 mm
Tolerance h888.946–89.000 mm
Mounting Hole Ø50 mmtaper 1:30
Material HSS

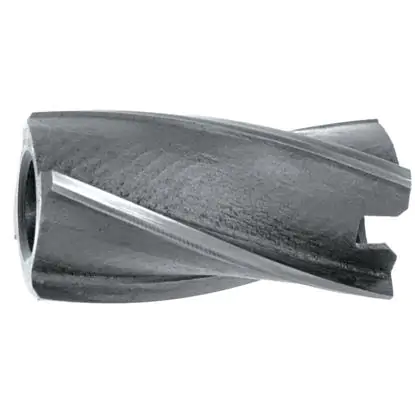

Shell roughing reamer Ø89 for metal — technical data
NRNa — shell roughing reamer, HSS DIN 222
| Technical Data | |
|---|---|
| Cutting diameter D (h8) | Ø89 mm (88.946–89.000 mm) |
| Mounting bore diameter d (taper 1:30) | 50 mm |
| Overall length L | 100 mm |
| Number of teeth Z | 4 |
| Type | NRNa — shell roughing reamer |
| Dimensional standard | DIN 222 |
| Material | HSS (high-speed steel) |
Manufacturing tolerance h8 for a diameter of 89 mm
| Class | Deviations [mm] | Dimension [mm] | |
|---|---|---|---|
| h8 | 0 / −0.054 | 88.946 – 89.000 | VERSION |
Cutting diameter 89 mm prepares the hole for a finishing reamer Ø89.5 H7 — the roughing reamer leaves an allowance of approx. 0.5 mm on the diameter for finish reaming.
Cutting data for the Ø89 shell roughing reamer
Indicative values Ø89 mm Z = 4
| Material group (ISO 513) | Vc [m/min] | fz [mm/tooth] | n [rpm] Ø89 | f [mm/min] Z=4 |
|---|---|---|---|---|
| PStructural and carbon steel | 8–10 | 0.40 | 29 | 46 |
| MStainless steel | 2–3 | 0.40 | 7 | 11 |
| KCast iron | 3–5 | 0.40 | 11 | 18 |
| NAluminum and light alloys | 12–16 | 0.40 | 43 | 69 |
Vc — cutting speed, fz — feed per tooth (catalog values for HSS, selected for a diameter of Ø89 mm). Spindle speeds were calculated for the lower end of the range: n = (Vc × 1000) ÷ (π × D), feed rate per minute f = fz × Z × n for Z = 4. Start with the lower values and adjust according to the material and clamping rigidity.
You may also need: Cutting parameters calculator
Applications of the Ø89 shell roughing reamer (preliminary reamer) for metal
Rough machining of holes before finish reaming
Shell roughing reamer Ø89 for metal — NRNa shell roughing reamer according to DIN 222 made of high-speed steel (HSS) HSS, mounted on an arbor through a tapered mounting bore Ø50 mm (1:30). The shell design allows economical machining of larger-diameter holes — one arbor accommodates multiple heads. The tool has a ~45° lead-in chamfer at the tip for centered entry, while the guiding margins on the cutting edges keep the tool aligned with the hole axis.
The Ø89 roughing reamer for metal straightens the hole after drilling: it corrects form errors, aligns the hole axis, and leaves a uniform stock allowance for finishing. Diameter 89 mm corresponds to a finished hole of Ø89.5 H7 (allowance of approx. 0.5 mm on the diameter). 4 cutting edges with large flutes evacuate chips efficiently when removing larger stock allowances, while HSS withstands demanding cutting conditions. Larger diameters are used for bearing and bushing seats and holes in machine housings, where consistent dimensions along the entire length are essential.
Workpiece materials
✓Structural and carbon steel
✓Gray cast iron
✓Aluminum and nonferrous alloys
▲Stainless steels — reduced cutting speed, generous coolant supply
✗Hardened steels above 45 HRC
Guidelines for correct reaming
- After rough reaming, ream to final size with a finishing reamer Ø89.5 H7 — stock allowance of 0.5 mm on the diameter.
- Use coolant (emulsion or cutting oil); cast iron can be machined dry.
- Withdraw the tool without reversing its rotation — reverse rotation damages the cutting edges.
Frequently asked questions — roughing reamer Ø89
A roughing reamer removes a large allowance after drilling, straightens the axis, and improves hole shape, but does not provide H7 tolerance. The hole is brought to final size with a finishing reamer.
The 89 mm diameter is selected for a finished hole of Ø89.5 H7 — after rough reaming, an allowance of approx. 0.5 mm remains on the diameter for the finishing reamer.
At larger diameters, a shell head is less expensive and lighter than a shank-type tool, and one arbor accommodates multiple diameters — an economical solution for workshops and maintenance.
