Description
Technical data of finger milling cutter fi 45 Morse
- working diameter D - 45 mm,
- length of the working part l - 63,00 mm,
- total length L - 188,00 mm,
- morse taper no. - MT4,
- number of teeth Z - 4.
Cutting parameters of burr fi 45 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 30 | 0,090 | 212 | 76 |
| M | Stainless steels | 18 | 0,070-0,080 | 127 | 36 |
| K | Cast iron | 20 | 0,090-0,200 | 142 | 51 |
| N | Aluminum | 60 | 0,040-0,080 | 425 | 68 |
May be useful
Cutting parameters calculator

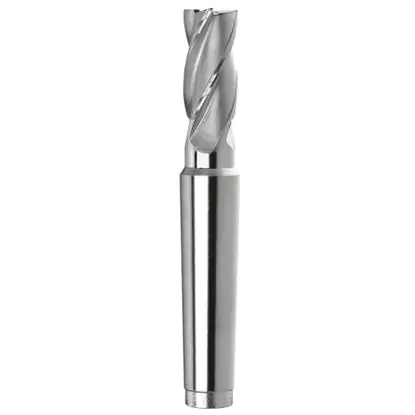

Morse 45 taper end mill
Finger45 Morse taper milling cutter NFPc DIN-845 It is a shank, cylindrical and face milling cutter, also called finger milling cutter. It has a Morse taper shank, 30-degree torsion blades with special chip grooves used to carry chips away from the tool. This feature minimizes the risk of clogging the grooves during machining, and as a result, avoids damage to the entire tool. The 45 Morse taper finger milling cutters in our store are made of special HSS (High Speed Steel). The properties of this steel result in greater resistance to harsh cutting conditions and greater resistance to potential chipping, chipping and other mechanical damage. The cutters are recommended for machining hard materials of the P1.2 class - P1.3. They are suitable for conventional machine tools and modern CNC computer-controlled machines.
