Description

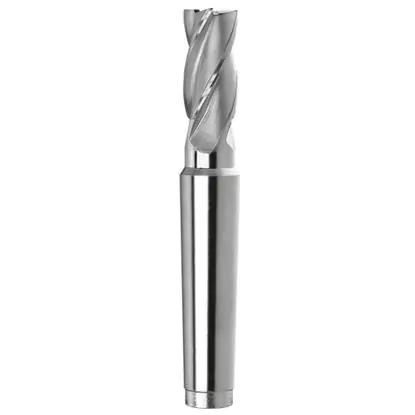

Technical data of finger milling cutter fi 35,5 Morse
- working diameter D - fi 35,5 mm,
- length of the working part l - 53,00 mm,
- total length L - 178,00 mm,
- morse taper no. - MT4,
- number of teeth Z - 6.
Cutting parameters of the burr fi 35,5 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 30 | 0,090 | 269 | 145 |
| M | Stainless steels | 18 | 0,070-0,080 | 161 | 68 |
| K | Cast iron | 20 | 0,090-0,200 | 179 | 97 |
| N | Aluminum | 60 | 0,040-0,080 | 538 | 129 |
You may find useful
Cutting parameters calculator
Morse taper end mill 35.5
Morse 35.5 taper finger milling cutter, arbor, cylindrical-head. It is a cutter characterized by high resistance to heavy cutting conditions, as well as increased resistance to any mechanical damage. The NFPc cutter is manufactured from modern high-grade HSS high speed steel. It is characterized by increased resistance to very heavy cutting conditions, including the high temperature created when cutting at high speeds. The 35.5 Morse taper finger cutters in our store have 30-degree torsion cylindrical blades. Their advantage is also a special threaded hole, which is used for easy installation of the cutter to the machine tool spindle. The milling cutters have the advantage of increased toughness and edge stability, as well as the ability to machine very hard materials, both on conventional and CNC machine tools.
