Machine Thread M22X2 DIN 376 A HSSE INOX Fra
search
  • Machine Thread M22X2 DIN 376 A HSSE INOX Fra
  • Machine Thread M22X2 DIN 376 A HSSE INOX Fra - nr. 1
  • Machine Thread M22X2 DIN 376 A HSSE INOX Fra - nr. 2
FRA

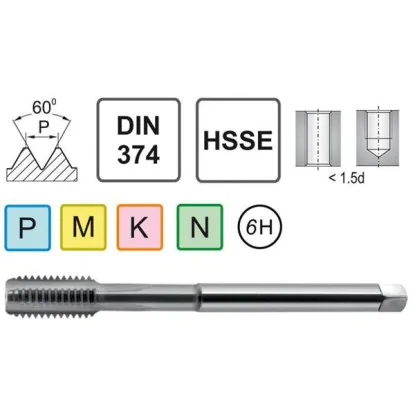

Machine tap M22X2 DIN 374 A HSSE Fra

FRA FRA
0000008223
€32.37 tax inc.

Net price: €26.32

Instant Shipping
W magazynie: 4 pcs.
W magazynie: 4 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Material HSSE
Thread size M22x2
ChamferA (6÷8) threads
Standard DIN 374

Technical data for the M22x2 machine tap

Technical Data
Nominal Diameter d1 M22x2
Thread Pitch P 2 mm
Tap Drill Diameter 20 mm
Chamfer A (6÷8) P
Thread tolerance 6H
Overall length l1140 mm
Flute length l227 mm
Shank diameter d218 mm
Square drive size a14.5 mm
M22x2 DIN 374 tap – dimensional drawing with lengths and shank dimensions

Universal M22x2 machine tap – HSSE DIN 374

The M22x2 machine tap is a professional tool for producing internal threads in both through holes and blind holes. Made of HSSE high-speed steel with 5% cobalt and a hardness of 65-67 HRC, it provides optimal cutting edge life and stable operation at temperatures up to 650°C. Tolerance 6H according to DIN 374.

Key advantages of the M22x2 machine tap

  • HSSE material – hardness of 65-67 HRC and heat resistance up to 650°C
  • Form A chamfer (6÷8 threads) – optimal for both through holes and blind holes
  • Tolerance 6H – standard accuracy grade for bolted joints
  • Compliance with DIN 374 – verified dimensional quality

The M22x2 machine tap is used in toolrooms and maintenance departments. The recommended tap drill diameter is 20 mm.

Cutting data for the M22x2 machine tap

MaterialCutting speed Vc [m/min]Spindle speed n [rpm]Feed f [mm/min]
PSteel 5-20 72-289 144-578
MStainless steel 5-10 72-144 144-288
KCast iron 5-15 72-217 144-434
NAluminum 10-25 144-361 288-722

Thread preparation M22x2 in a through hole or blind hole

1 Spot drilling

NC spotting drill 90°

2 Drilling

Ø 20 mm

3 Tapping

M22x2

✓ Done!

Tolerance 6H

Standard: DIN 374 | Chamfer: A (straight) | Application: through holes and blind holes

Tolerance 6H — metric thread tolerance classes

ClassAccuracyApplicationStatus
4H / 4g High Precision connections, hydraulics —
6H / 6g Standard Machine building, general-purpose SELECTED
7H / 8g Low Large clearance, easy assembly —

6H = internal thread (nut, hole) | 6g = external thread (screw)
