Description
Technical data of burr 11 long 2 flute
- diameter of the working part D - 11 mm,
- diameter of the shank part d - 12.0 mm,
- length of the working part l - 27,0 mm,
- length of the shank part l1 - 84.0 mm,
- total length L - 111,0 mm,
- number of blades Z - 2
Cutting parameters of long finger milling cutter fi 11 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 15 | 0,025÷0,030 | 434 | 22 |
| M | Stainless steels | 10 | 0,025÷0,030 | 290 | 15 |
| K | Cast iron | 10 | 0,025÷0,050 | 290 | 15 |
| N | Aluminum | 30 | 0,015÷0,030 | 869 | 26 |
May be useful
Cutting parameters calculator
Trenching burr 11 long 2 flute for grooves

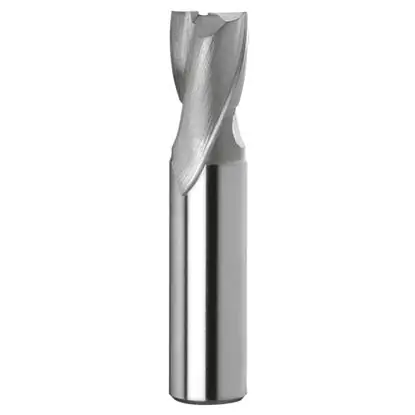

The 11 long 2 flute arbormilling cutter for grooves is a double-edged NFPg, commonly known as a finger milling cutter. It has a diameter of 12 mm, cylindrical-facet blades with a 25-degree turn angle and a short shank for maximum rigidity. NFPg cutters are made in accordance with DIN 327, and come in two versions: for smooth cylindrical shank DIN 1835A and cylindrical shank with Weldon coat DIN 1835B.
In our store, we offer you high-quality 11 long double-feather NFPg burrs dedicated to both individual customers and large industrial plants. They are suitable for roughing and medium fine machining. They have 2 central blades that allow vertical penetration into the workpiece. They are made of high-quality HSS (High Speed Steel), which is distinguished by increased hardness and durability, as well as above-average resistance to harsh cutting conditions. The cutters are suitable for machining unalloyed and alloyed steels, metals, nonferrous metals, metal alloys and thermoset plastics.
