Die R 1/4 tapered inch - HSS IS07/1 Fanar
search
  • Die R 1/4 tapered inch - HSS IS07/1 Fanar
  • Die R 1/4 tapered inch - HSS IS07/1 Fanar - nr. 1
Fanar Narzędzia

Die R 1/4 HSS DIN-EN 24230

Fanar Narzędzia Fanar Narzędzia
13267
Thread size: R 1/43 sizes of this die
€20.72 tax inc.

Net price: €16.84

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

Technical data for the R 1/4 inch taper threading die

Technical data
Nominal diameter d1 inches/mm R 1/4 inch  13.16 mm
Thread pitch P inches/mm 19 threads per inch 1.33 mm
Outside diameter d2 38 mm
Thickness h1 14 mm
Number of chip clearance holes 5
Required shaft diameter 13.03mm
Thread angle G 55°
Thread standard  DIN 24230
Inch threading die drawing

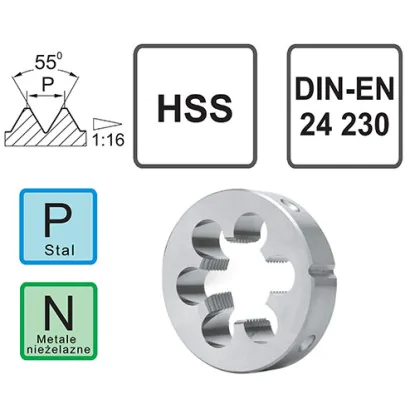

Die R 1/4 inch HSS – tool for BSPT taper pipe threads

The R 1/4 inch die is used for cutting BSPT taper pipe threads with a 55° thread angle and a 1:16 taper. Made from high-speed steel (HSS), it ensures cutting edge durability when machining steel, copper, and brass pipes. Compliance with DIN EN 24230 guarantees the dimensional precision required for leak-tight connections without additional gaskets.

Features of the R 1/4 inch taper threading die for pressure systems

  • High-hardness HSS steel – enables machining of materials with tensile strengths up to 800 MPa while maintaining the taper geometry
  • BSPT taper thread profile with a 55° angle – self-sealing thread thanks to its 1:16 taper, with no flat gaskets required
  • Thread starting diameter 13.16 mm – complies with the BSP standard for the nominal size of 1/4 inch
  • Manufactured to DIN EN 24230 – ensures compatibility with high-pressure hydraulic and pneumatic fittings
  • Precise taper geometry – ensures uniform tightening and a leak-tight metal-to-metal connection

The R 1/4 inch die is used in hydraulic, pneumatic, and compressed air systems. The BSPT taper pipe thread is used wherever leak-tightness is required without additional sealing components – in industrial fittings, pressure connectors, and tank nozzles.

Choose the R 1/4 inch HSS taper threading die for cutting self-sealing pipe threads. An essential tool for hydraulic and pneumatic installers and pressure system service technicians.

Frequently asked questions

The R (BSPT) thread has a 1:16 taper, making it self-sealing when tightened. The G (BSPP) thread is parallel and always requires a gasket or O-ring. Both have a 55° profile and the same initial diameter of 13.16 mm.

The R thread is self-sealing, but PTFE tape or sealing compound is recommended in practice. Additional sealing improves leak-tightness and makes subsequent disassembly easier without damaging the thread.

Product accessories

Die stock 38X14

Reference: 393848 In stock > 10 items

€6.58

€8.09 brutto

Reviews

No customer reviews for the moment.

Add a review about the product

Die R 1/4 HSS DIN-EN 24230

Die R 1/4 HSS DIN-EN 24230

Shipping

All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE

Courier GLS Przelew24 / Prepayment 14,76 zł gross Delivery time 1 working day
Courier GLS Cash on delivery 17,26 zł gross Lead time 1 working day
