Description
Technical data of VCMT 160404 boron tile
| Technical data | |
|---|---|
| Side length l | 16,5 mm |
| Insert thickness t | 4.76 mm |
| Hole diameter d1 | 4.4 mm |
| Corner radius re | 0,4 mm |
| ANSI code | VCMT 331 |

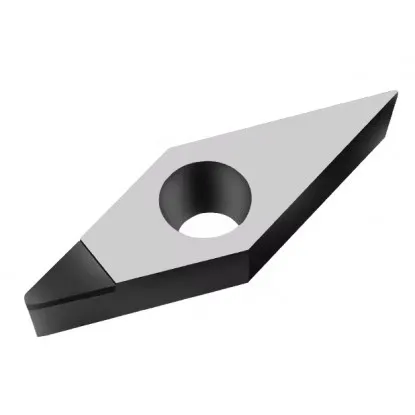

Carbide insert VCMT 160404 for hardened metals
Carbide insert vCMT 160408 CBN lathe Horn is a specialized insert designed for turning hardened steels and wear-resistant materials. Made of CBN (boron nitride - regular boron nitride), it is distinguished by its superior wear resistance and work stability when machining materials with hardness up to 60 HRC.
VCMT 's diamond-shaped geometry with a sharp tip provides the ability for fine finishing, fine turning and corner and hole work. Size 160408 guarantees the ideal combination of durability and cutting accuracy.
Carbide insert vCMT lathe 160408 CBN Horn is used in right-hand turning knives with VCMT mounting, such as:
- SVJCR - right-hand turning knives with corner access,
- DVJNR - right-hand knives with high rigidity for heavier machining,
- MVJNR - right-hand knives for precision and finishing machining.
As a result, the insert is compatible with a wide range of toolholders used in series and unit production.
Carbide insert it is designed for turning:
- hardened steels up to 60 HRC,
- gray and ductile cast irons,
- heat-resistant alloys and hard-to-machine materials.
The use of boron nitride allows machining at very high cutting speeds, which reduces production time and achieves a smooth surface and dimensional repeatability.
Benefits:
- Carbide insert finish turning - ideal for precision machining of hard materials.
- For machining up to 60 HRC - dedicated to hardened steels, cast irons and special alloys.
- Exceptional durability - CBN edge guarantees wear resistance and long life.
- Compatibility - fits right-hand knives SVJBR, SVJCR, DVJNR, MVJNR.
VCMT 160408 CBN Horn is a lathe insert that provides superior precision and stability in turning hard materials.
