MGMN 400 insert for cutting and grooving Horn
search
  • MGMN 400 insert for cutting and grooving Horn
  • MGMN 400 insert for cutting and grooving Horn - nr. 1
Horn

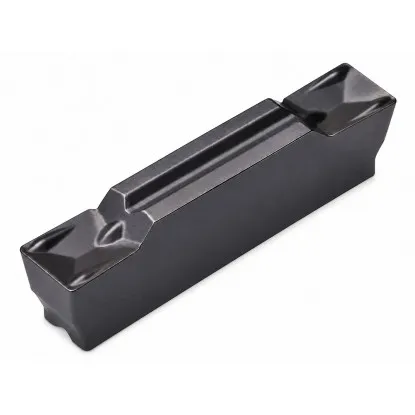

Carbide insert MGMN 400 T H5115 Horn

Horn Horn
15332
Insert width: 4 mm6 sizes of this insert
1 mm1.5 mm2 mm3 mm4 mm5 mm
€6.47 tax inc.

Net price: €5.26

Instant Shipping
W magazynie: 10-100 szt.
W magazynie: 10-100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

MGMN 400 insert in grade H5115 is a double-ended carbide insert from the Korean company Horn, designed for parting, grooving, and turning cast iron.

Technical data for the 4 mm MGMN cast iron parting insert

MGMN 400 H5115 dimensions and geometric parameters

Technical data
Cutting width b 4 mm
Corner radius r 0.4 mm
overall length l 22 mm
width d 4.2 mm
height t 10 mm
MGMN 400 H5115 cast iron parting insert

The MGMN cast iron insert with a width of 4 mm allows

Turning operations in cast iron with the MGMN 400 H5115 insert

  • cast iron parting

  • turning

  • grooving

  • facing

Parting cast iron with a tool fitted with an MGMN 400 H5115 insert
Cutting a groove in cast iron with a turning tool fitted with an MGMN insert

MGMN 400 cutting data — grade H5115 for cast iron

Speeds and feeds for 3 machining operations in cast iron

MaterialPartingFacingGrooving / turning
Vc [m/min]fn [mm/rev]Vc [m/min]fn [mm/rev]Vc [m/min]fn [mm/rev]
K Gray cast iron (GJL) 100 – 160 0.12 – 0.32 120 – 180 0.15 – 0.38 110 – 170 0.12 – 0.30
K Ductile cast iron (GJS) 80 – 120 0.10 – 0.24 90 – 140 0.12 – 0.28 80 – 130 0.10 – 0.24
K Malleable / hardened cast iron 50 – 90 0.08 – 0.18 60 – 100 0.10 – 0.22 50 – 90 0.08 – 0.18

MGMN 400 cast iron parting insert – 4 mm insert for gray and ductile cast iron

Grade H5115 with a CVD Al₂O₃ coating

The MGMN 400 H5115 Horn insert is a double-ended carbide insert with a cutting edge width of 4 mm, designed for heavy-duty parting of large-diameter cast iron shafts and cutting wide external grooves in cast iron on conventional and CNC lathes. The cemented carbide grade H5115 with a multilayer aluminum oxide (Al₂O₃)-based CVD coating covers the ISO K10-K30 application range, specializing in machining gray, ductile, and malleable cast iron, with the ability to part cast steel and hardened cast iron. The widest cutting edge at 4 mm and increased body height (10 mm) provide maximum rigidity and stability for deep parting cuts on large diameters at long overhangs, allowing the highest feed rates in the entire MGMN family. The insert is compatible with MGMN-type indexable tools with a spring clamping system. Its 2-edge design allows the insert to be indexed after the first edge wears out and machining to continue without replacement.

Key features of the MGMN 400 H5115 Horn insert

  • CVD coating with a thick Al₂O₃ layer provides exceptional resistance to abrasive and crater wear, essential when machining cast iron containing abrasive silicon carbide (SiC) at high cutting speeds
  • Grade H5115 in the ISO K10-K30 range provides an optimal balance between hardness and edge toughness when machining gray, ductile, and malleable cast iron
  • Cutting width of 4 mm with T-type geometry allows heavy-duty parting of cast iron shafts up to 32 mm in diameter and cutting wide grooves for seals and sleeves, as well as lubrication grooves
  • The double-ended design provides 2 independent cutting edges, reducing the machining cost per 1 component by 50 percent
  • Compatibility with MGEHR-type holders in shank sizes 20x20-32x32 mm, BDKT parting blades, and MGIVR, BIKT, and BEKT internal holders for deep cutting
  • Dry machining capability — gray cast iron requires no coolant, and the graphite in its structure acts as a natural lubricant, preventing thermal cracking of the CVD coating

The MGMN 400 cast iron parting insert is suitable for parting heavy, large-diameter cast iron workpieces, machining hydraulic housings, heavy-duty bar parting, and cutting wide grooves. The increased cutting edge width of 4 mm provides greater rigidity when working at long overhangs. The recommended cutting speed Vc is 100-160 m/min for gray cast iron and 80-120 m/min for ductile cast iron at feed rates of 0.10-0.30 mm/rev. Dry machining is recommended for gray cast iron — cooling is unnecessary and may shorten coating life due to thermal shock; compressed air cooling is acceptable for ductile cast iron.

Compatible turning tools

for the MGMN 400 insert (groove width 4 mm)

MGEHR/L 20x20-420×20 × 125 mm | Tmax 18R right-hand
←L left-hand
→
MGEHR/L 25x25-425×25 × 150 mm | Tmax 18R right-hand
←L left-hand
→
MGEHR/L 32x32-432×32 × 170 mm | Tmax 18R right-hand
←L left-hand
→
BDKT R/L 20x20 K4C T2020×20 × 125 mm | Tmax 20 | Ømax 40R right-hand
←L left-hand
→
BDKT R/L 20x20 K4C T2520×20 × 125 mm | Tmax 25 | Ømax 50R right-hand
←L left-hand
→
BDKT R/L 25x25 K4C T2225×25 × 150 mm | Tmax 22 | Ømax 44R right-hand
←L left-hand
→
BDKT R/L 25x25 K4C T2525×25 × 150 mm | Tmax 25 | Ømax 50R right-hand
←L left-hand
→
BDKT R/L 25x25 K4C T4025×25 × 170 mm | Tmax 40 | Ømax 80R right-hand
←L left-hand
→
BDKT R/L 32x32 K4C T2232×32 × 170 mm | Tmax 22 | Ømax 44R right-hand
←L left-hand
→
MGIVR/L 2520-4Ø25 (d=20) × 150 mm | Tmax 6R right-hand
←L left-hand
→
MGIVR/L 3125-4Ø31 (d=25) × 200 mm | Tmax 8R right-hand
←L left-hand
→
MGIVR/L 3732-4Ø37 (d=32) × 250 mm | Tmax 6R right-hand
←L left-hand
→
BIKT R/L 20 K4C T6Ø20 × 170 mm | Tmax 6R right-hand
←L left-hand
→
BIKT R/L 25 K4C T7Ø25 × 200 mm | Tmax 7R right-hand
←L left-hand
→
BIKT R/L 32 K4C T8Ø32 × 250 mm | Tmax 8R right-hand
←L left-hand
→
BIKT R/L 40 K4C T10Ø40 × 300 mm | Tmax 10R right-hand
←L left-hand
→
BIKT R/L 50 K4C T15Ø50 × 350 mm | Tmax 15R right-hand
←L left-hand
→
BEKT R/L 25 K4C T10Ø25 × 200 mm | Tmax 10 | reinforcedR right-hand
←L left-hand
→
BEKT R/L 32 K4C T10Ø32 × 250 mm | Tmax 10 | reinforcedR right-hand
←L left-hand
→

Frequently asked questions

The MGMN 400 insert in grade H5115 is specialized for machining cast iron in the ISO K10-K30 range: gray (GJL), ductile (GJS), and malleable cast iron. It can also part cast steel and hardened cast iron. For structural and stainless steels, a general-purpose grade such as H6310 is a better choice.

No. Dry machining is recommended for gray cast iron — the graphite in the material structure acts as a natural lubricant, while emulsion cooling can cause thermal shock and cracking of the CVD coating. For ductile cast iron, compressed air cooling is acceptable for chip removal.

With a cutting edge width of 4 mm and standard mounting in the holder, the MGMN 400 insert can part cast iron shafts up to 32 mm in diameter. For smaller diameters, choose MGMN 300 (3 mm); for diameters above 32 mm, use a BDKT parting blade with extended overhang or an MGMN 500 (5 mm) insert.
