Turning tool groove boring tool fi 20 mm 4 mm Smoxh
search
  • Turning tool groove boring tool fi 20 mm 4 mm Smoxh
  • Turning tool groove boring tool fi 20 mm 4 mm Smoxh - nr. 1
  • Turning tool groove boring tool fi 20 mm 4 mm Smoxh - nr. 2
Smoxh

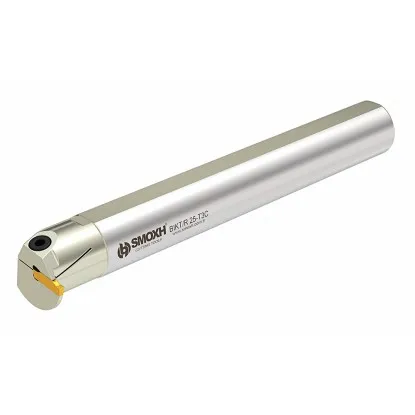

Turning tool BIKT-K-R-20 4 T6 Smoxh

Smoxh Smoxh
14516
Shank: Ø 20 mm3 sizes of this turning tool
€58.26 tax inc.

Net price: €47.37

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

GROOVE WIDTH4 mm
GROOVE DEPTH T MAX6 mm
MIN. BORE DIAMETERØ26 mm
INSERT · 2 EDGESMGMN 400

Grooving boring bar 20 mm 4 mm Smoxh

Technical data for the boring bar for Korloy MGMN 400 inserts

Technical data
DesignationBIKT R 20 K4C T6
Manufacturer's codeSM11229
Shank diameter dØ20 mm
Height to flat h18 mm
Overall length L170 mm
Head length l33 mm
Dimension f (centerline – cutting edge)15.75 mm
Groove depth T max6 mm
Minimum bore diameter D minØ26 mm
Insert pocketMGM. 4C (MGMN 400, width 4 mm)
HandR – right-hand (left-hand version: SM11366)
Grooving boring bar 20 mm 4 mm BIKT-R with carbide insert

BIKT-R 20 K4C T6 – how it works with an MGMN 400 insert

Round shank with a flat, screw clamp, and double-ended insert

Grooving boring bar 4 mm BIKT-R 20 K4C T6 is a Smoxh tool for cutting internal grooves in bores from Ø26 mm. The MGMN 400 carbide insert is held by a screw clamp: the BKTV M5x17 screw draws the head's flexible lip against the insert. Changing the insert takes a dozen or so seconds without removing the tool from the holder.

The shank is a Ø20 mm bar, 170 mm long, with a flat machined to a height of h = 18 mm. The flat locates the cutting edge in the reduction sleeve or V-block tool holder, so the insert edge returns to the same height each time it is clamped.

The 33 mm long head carries an insert pointing radially outward. The cutting edge projects 6 mm beyond the shank profile, which is the groove depth T max. This sets the limit: the Ø20 mm shank plus the 6 mm cutting edge projection gives a minimum bore diameter D min = Ø26 mm.

The MGMN 400 insert is double-ended. When one edge becomes dull, rotate it 180° and use the other end.

What this tool can machine – grooves in bores

Diagram of an internal retaining ring groove cut in a single radial pass

Internal groove in a single pass

A 4 mm groove for a retaining ring, seal, or undercut in a bore, up to 6 mm deep. The insert feeds radially into the wall to the specified depth.

Diagram of widening an internal groove with two passes and side turning with the insert

Groove wider than the insert

Two adjacent passes, with side turning between them at a depth of up to 0.8 × 4 mm = 3.2 mm. The -M or -T geometry allows side cutting.

Icon of the insert screw clamp in the grooving boring bar head

Screw clamp

The BKTV M5x17 screw draws the head's flexible lip against the insert. The insert can be changed without removing the tool from the holder.

Icon of a double-edged MGMN insert rotated by 180° in the holder

Double-edged insert

MGMN 400 has a cutting edge at both ends. One edge dull? Rotate the insert by 180° and use the other.

Icon of the tool in a minimum-diameter bore: shank plus groove depth

Bores from Ø26 mm

The Ø20 mm shank and 6 mm cutting edge projection must fit in the bore together: D min = 20 + 6 = Ø26 mm. In a smaller bore, the shank will contact the wall.

Dimensions and grooving reach – dimensional drawing

Top view, enlarged head detail, and end view in a D min bore

Dimensional drawing of the BIKT-R 20 K4C T6 tool: dimension f and minimum bore diameter
Dimension icon: grooving boring bar shank diameter d

DIAMETER d

Ø20 mm

Dimension icon: grooving boring bar shank height to flat h

HEIGHT h

18 mm

Dimension icon: grooving boring bar overall length L

LENGTH L

170 mm

Dimension f icon: distance from the shank centerline to the cutting edge

DIMENSION f

15.75 mm

Dimension f = 15.75 mm is the distance from the shank centerline to the cutting edge. Dimension T max = 6 mm indicates the catalog grooving reach; the enlarged detail shows it from the head profile to the cutting edge. The end view shows the tool in a Ø26 mm bore: the cutting edge reaches the wall, with only working clearance remaining on the opposite side of the shank.

Diagram of grooving in a bore: radial feed and depth T max 6 mm

The tool enters through the bore opening, and the insert cuts radially into the wall to the groove depth. Chips have little room inside the bore, so direct coolant onto the insert and retract it every few millimeters. Set the cutting edge at the bore centerline height within ±0.1 mm.

BIKT R 20 K4C T6 designation decoder

Five elements of the Smoxh code, read from the left

Designation: BIKT R 20 K4C T6
BIKT
BIKT boring bar for internal grooves: round shank in the bore, MGMN insert in the groove (BIKT)
Element 1
holder type
For internal grooves
BIKT
Smoxh series for internal grooving with a round shank and screw clamp. The external parting counterpart carries the BDKT code.
R
Right-hand BIKT boring bar in a bushing bore, top view from the tailstock side (R)
Element 2
hand
Right-hand
R
Standard arrangement with the workpiece in the chuck to the left of the tool: the boring bar enters the bore from the tailstock side. Version L is the mirror image – code SM11366.
20
Cross section of the BIKT boring bar's Ø20 mm round shank with a flat on top (20)
Element 3
shank
Ø20 mm
20
Round shank diameter in millimeters. The flat at h = 18 mm locates the cutting edge in a Ø20 mm reduction sleeve or V-block tool holder.
K4C
MGMN insert with a width of 4 mm and cutting edge dimension (K4C)
Element 4
insert pocket
MGM. 4C
K4C
K – Korloy MGMN insert system, 4 – groove width 4 mm. The same element in the BDKT code denotes the same pocket.
T6
Groove depth T max 6 mm: cutting edge projection beyond the boring bar shank (T6)
Element 5
depth
T max 6 mm
T6
Cutting edge projection beyond the shank profile, which is the maximum groove depth. Together with the shank diameter, it gives the minimum bore D min = Ø26 mm.
Smoxh catalog convention, not ISO 5610 · dimensions: d Ø20 · h 18 · L 170 · f 15.75 mm

Internal grooving cutting data – speeds and feeds for a 4 mm insert

Starting values with coolant; refer to the insert grade data sheet for definitive data

Values apply to coated MGMN 400 inserts when machining with coolant. Chips have less room inside a bore than outside, so start in the lower half of the feed range and keep tool overhang as short as possible.

Workpiece materialVc [m/min]fn [mm/rev]
PCarbon steel120–2000.07–0.15
PAlloy steel130–1800.07–0.15
PHardened steel70–1300.07–0.12
MStainless steel120–1600.07–0.15
KCast iron130–2100.07–0.15

Calculate spindle speed from the bore diameter, not the shank diameter: n = (1000 × Vc) / (π × D). For a Ø26 mm bore in carbon steel at Vc = 170 m/min: n = (1000 × 170) / (3.14 × 26) ≈ 2080 rpm. For a Ø60 mm bore, approximately 900 rpm is sufficient because the same cutting speed applies over a larger circumference.

▲
Operating limitations

Do not enter a bore smaller than Ø26 mm: the shank will contact the wall before the cutting edge reaches the full groove depth. Keep overhang from the holder as short as possible, approximately up to 4 × d = 80 mm, because a longer steel bar starts to vibrate and chips the insert corner. For a retaining ring groove, check the insert width with a caliper: the groove must be wider than the ring by the clearance specified in the ring standard, rather than equal to the insert width.

Installing the MGMN 400 insert in 3 steps

1Loosen

the BKTV M5x17 screw with the wrench SAK-AA4, 2–3 turns

2Seat

clean the pocket, slide the insert in until fully seated

3Tighten

and check that the cutting edge is at bore centerline height ±0.1 mm

✓Ready

grooves in bores from Ø26 mm

Cutting insert not included

COMPATIBLE WITH:

✓MGMN 400 grooving inserts (Smoxh: MGM. 4C) – width 4 mm, length 21 mm, height 4.8 mm
✓BKTV M5x17-9211 clamping screw (spare part) and SAK-AA4-9903 wrench
✓Mirror-image version BIKT-L 20 K4C T6 (SM11366) with the same dimensions
✓Holders for a Ø20 mm round shank with a flat: reduction sleeve or V-block tool holder

Smoxh grooving boring bars and parting tools for MGMN 400 inserts

BIKT R/L 25 K4C T7Ø25 mm | Ømin 32 mm | L 200 mm | T max 7 mmR right-hand
←
L left-hand
→
BIKT R/L 32 K4C T8Ø32 mm | Ømin 40 mm | L 250 mm | T max 8 mmR right-hand
←
L left-hand
→
BIKT R/L 40 K4C T10Ø40 mm | Ømin 50 mm | L 300 mm | T max 10 mmR right-hand
←
L left-hand
→
BIKT R/L 50 K4C T15Ø50 mm | Ømin 65 mm | L 350 mm | T max 15 mmR right-hand
←
L left-hand
→
BDKT R/L 2020 K4C T2020x20 mm | L 125 mm | T max 20 mm | Ø40 mmR right-hand
←
L left-hand
→
BDKT R/L 2020 K4C T T2020x20 mm | L 125 mm | T max 20 mm | Ø40 mmR right-hand
←
L left-hand
→
BDKT R/L 2020 K4C T2520x20 mm | L 125 mm | T max 25 mm | Ø50 mmR right-hand
←
L left-hand
→
BDKT R/L 2525 K4C T2225x25 mm | L 150 mm | T max 22 mm | Ø44 mmR right-hand
←
L left-hand
→
BDKT R/L 2525 K4C T T2225x25 mm | L 150 mm | T max 22 mm | Ø44 mmR right-hand
←
L left-hand
→
BDKT R/L 2525 K4C T2525x25 mm | L 150 mm | T max 25 mm | Ø50 mmR right-hand
←
L left-hand
→
BDKT R/L 2525 K4C T T2525x25 mm | L 150 mm | T max 25 mm | Ø50 mmR right-hand
←
L left-hand
→
BDKT R/L 2525 K4C T4025x25 mm | L 170 mm | T max 40 mm | Ø80 mmR right-hand
←
L left-hand
→
BDKT R/L 3232 K4C T2232x32 mm | L 170 mm | T max 22 mm | Ø44 mmR right-hand
←
L left-hand
→

The 4 mm BIKT-R 20 K4C T6 grooving boring bar cuts grooves 4 mm wide and up to 6 mm deep in bores from Ø26 mm, at a cutting speed of 120–200 m/min and a feed of 0.07–0.15 mm/rev in carbon steel. In hydraulic and pneumatic applications, it cuts internal grooves for sealing and retaining rings in bushings and cylinders. Inserts from other grooving systems, such as DGN or KGM, use different pockets and do not fit this holder.

Frequently asked questions

An MGMN 400 grooving insert (in the Smoxh catalog: MGM. 4C) with a width of 4 mm, length of 21 mm, and height of 4.8 mm. It is double-ended, so one insert provides two cutting edges. DGN, GTN, and KGM inserts do not fit this pocket.

Ø26 mm. This is the shank diameter of 20 mm plus the groove depth of 6 mm. In a smaller bore, the shank will contact the opposite wall before the cutting edge reaches full depth. BIKT R 25 K4C T7 works in larger bores (from Ø32 mm), and this tool has no restrictions there.

Start at approximately 2080 rpm for carbon steel, at Vc = 170 m/min with a 4 mm insert. Calculate spindle speed from the bore diameter, so approximately 900 rpm is sufficient for Ø60 mm. For stainless steel, use Vc 120–160 m/min.

Up to 6 mm deep, which is T max. In a single pass, the groove width equals the insert width of 4 mm; wider grooves require adjacent passes and side turning. For grooves deeper than 3 mm, retract the insert every few millimeters to clear chips from the bore.
