Carbide insert APKT 100305 for Aluminum - Carbide insert milling machine Horn - nr. 2
search
  • Carbide insert APKT 100305 for Aluminum - Carbide insert milling machine Horn - nr. 2
  • Carbide insert APKT 100305 for Aluminum - Carbide insert milling machine Horn - nr. 3
Horn

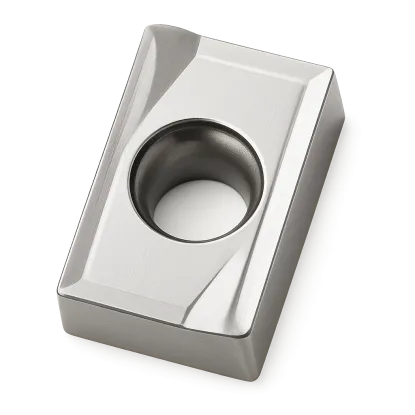

Carbide insert APKT 100305 PDFR K10 Horn

Horn Horn
0000004237
Cutting edge length: 10 mm3 sizes of this insert
€3.88 tax inc.

Net price: €3.16

Instant Shipping
W magazynie: +100 szt.
W magazynie: +100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

APKT 100305 milling insert – 85° rectangular insert for aluminum

Technical data
Edge length l 10 mm
Insert thickness s 3.5 mm
Corner radius rε 0.5 mm
Shape Rectangular 85° (A)
Clearance angle 11° positive (P)
Tolerance class K (precision)
Number of edges 2
Grade K10 (uncoated carbide)
APKT 100305 PDFR milling insert, uncoated K10 carbide, 85° rectangular insert with a chip breaker

Milling data for the APKT K10 indexable insert

nonferrous metals and gray cast iron — ISO N and K groups, 90° angle milling heads

MaterialFinishingSemi-finishingRoughing
Vc [m/min]fz [mm/tooth]ap [mm]Vc [m/min]fz [mm/tooth]ap [mm]Vc [m/min]fz [mm/tooth]ap [mm]
NAluminum, nonferrous metals 400-600 0.10-0.15 1-2 350-500 0.10-0.15 2-4 300-450 0.15-0.25 4-6
KGray cast iron 220-280 0.10 1-2 180-240 0.15 2-3 150-220 0.20-0.25 3-5

K10 carbide insert for aluminum – design and applications

single-sided 85° rectangle with positive geometry and a sharp edge

Milling insert APKT is a single-sided, positive indexable insert with a rectangular shape and a 85° corner angle, designed primarily for milling aluminum and other nonferrous metals. It is made of uncoated cemented carbide in grade K10, which combines high hardness with a smooth, sharp cutting edge. The positive geometry with a 11° clearance angle reduces cutting forces and limits built-up edge formation, which is typical when machining soft aluminum. The insert is mounted in 90° angle milling heads and cutters for milling shoulders, pockets, and straight vertical walls. Precision class K tolerance ensures uniform height of all cutting edges in a multi-insert milling head and an even load on each corner.

Key benefits of the K10 carbide indexable insert

  • Two cutting edges — the 85° rectangle provides 2 working corners; when a corner becomes dull, index the insert in the pocket without replacing the holder.
  • Grade K10 for aluminum — high-hardness uncoated cemented carbide dedicated to nonferrous metals in the ISO N group.
  • Positive 11° geometry — lower cutting forces and less built-up edge formation when machining soft, ductile aluminum alloys.
  • The sharp, uncoated edge ensures smooth slot walls and low surface roughness after milling.
  • Class K tolerance provides precise, uniform height of all inserts in a multi-insert milling head.
  • The 90° entering angle allows straight vertical walls to be milled and the full shoulder depth to be engaged.

Applications and cutting data selection for aluminum milling

Insert APKT performs well in milling narrow slots, cutouts, and projections, as well as face milling steps. The 90° entering angle directs forces primarily radially, allowing the full shoulder depth to be engaged in one pass. Calculate milling head speed using n = 1000·vc/(π·D): for a milling head with a diameter of 63 mm and a cutting speed of 400 m/min, the result is approximately 2020 rpm. For aluminum, maintain a high cutting speed and generous cooling to prevent chips from clogging the flute and welding to the cutting edge.

The sharp, uncoated edge of grade K10 produces low roughness and clean slot walls, making the carbide insert well suited to finishing aluminum housings, plates, and profiles. The 0.5 mm corner radius strengthens the tip at moderate feeds, but select feed per tooth (fz) carefully when milling cast iron. Match depth of cut ap to mounting rigidity: with slender arbors and thin-walled workpieces, limit it to avoid vibration caused by the radial direction of forces at a 90° angle. Two cutting edges allow the insert to be rotated once the first corner becomes dull, reducing the cost per edge in series production.

▲
Application limitation

Uncoated grade K10 is intended primarily for aluminum, other nonferrous metals, and cast iron. For steel and stainless steel, select an insert APKT in a grade approved for ISO P or M groups.

Parallelogram insert designation decoder according to ISO 1832

how to read the APKT 100305 PDFR code — positions 1–10 of the designation

Designation APKT 100305 PDFR according to the standard ISO 1832: 4 letters describe the geometry and construction, 2 numeric codes describe the dimensions, and the suffix PDFR — the wiper edge geometry. Each field has a number, an icon and a brief description.

ISO 1832 designation decoder — how to read the code

1Ashape 2Pangle α 3Ktolerance 4Ttype – 510edge length 603thickness 705radius rε – 7Pangle κ 8Dland α′ 9Fedge 10Rhand

Positions 1–4 · ISO code

1AShape

Parallelogram 85°

2 corners of 85° per side

2PClearance angle

α = 11°

positive, single-sided

3KTolerance

Class K (precision)

ground thickness ±0.025 mm

4TType

Countersunk hole + chip breaker

countersink 40–60°, single-sided chip breaker

Positions 5–7 · dimensions [mm]

510Edge length

code 10

dimension according to the manufacturer's catalog data sheet

603Thickness

s = 3.18 mm

between rake faces

705Corner radius

rε = 0.5 mm

code ÷ 10 → radius in mm

PDFR suffix · wiper edge

7PEntering angle

κ = 90°

90° angle milling cutters and milling heads

8DWiper land

α′ = 15°

wiper land clearance angle

9FEdge condition

Sharp

as ground, without edge preparation

10RHand

Right-hand

standard clockwise spindle rotation

✓ 2 corners × 1 side = 2 cutting edges

Full designation: APKT 100305 PDFR = parallelogram 85° · positive 11° · class K · countersunk hole and chip breaker · s 3.18 mm · rε 0.5 mm · κ 90° · wiper chamfer 15° · sharp edge · right-hand (R)

Material compatibility of the APKT K10 insert

materials and operations suitable for grade K10

Recommended and non-recommended applications:

RatingMaterial or operation
✔ Aluminum and aluminum alloys (ISO N) — the primary application of grade K10
✔ Other nonferrous metals: brass, bronze, copper
✔ Gray cast iron (ISO K) — uncoated, hard cemented carbide
✔ Milling 90° shoulders, slots, and projections, and face milling steps
✔ 90° angle milling heads and cutters with a pocket for the APKT 1003 insert
✗ Steel and stainless steel without a grade approved for ISO P or M groups
✗ 45° face milling — geometry dedicated to 90° milling heads
✗ ISO S heat-resistant superalloys — outside the application range of uncoated K10

Frequently asked questions about the APKT 100305 insert

grade, materials, geometry, and number of edges

Primarily for aluminum and nonferrous metals (group ISO N) and gray cast iron (ISO K). Grade K10 is an uncoated cemented carbide with high hardness and a sharp edge.

Two — the rectangle with a corner angle of 85° has two sharp corners, and the positive, single-sided design allows cutting only with the top face. Once the first corner becomes dull, rotate the insert in its pocket to the second edge without changing the tool holder.

Conservative settings for aluminum: cutting speed 400–600 m/min, a feed per tooth of 0.10–0.15 mm and a depth of 1–2 mm for finishing, and for roughing vc 300–450 m/min, fz up to 0.25 mm and ap up to 6 mm. Always verify these values against the data sheet for the milling head being used.

The letters APKT describe the basic geometry and design according to ISO 1832, while the numbers correspond to dimensions: length 10 mm, a thickness of 3.5 mm and radius 0.5 mm. PDFR is the manufacturer's geometry code; its meaning must be checked in the product data sheet.
