Description
Technical data of carbide cutter fi 1,5
| Technical data | |
|---|---|
| Working diameter d1 | 1,5 mm |
| Shank diameter d2 | 4 mm |
| Length of working part l2 | 4 mm |
| Overall length l1 | 50 mm |
| Number of blades | 2 |
Cutting parameters of carbide cutter fi 1,5 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 60-70 | 0,004-0,005 | 12739 | 102 |
| M | Stainless steel | 50 | 0,005 | 10616 | 106 |
| K | Cast iron | 87-100 | 0,005 | 18471 | 185 |
| N | Aluminum | 150 | 0,006 | 31847 | 382 |
| H | Hardened materials | 40 | 0,003 | 8493 | 51 |

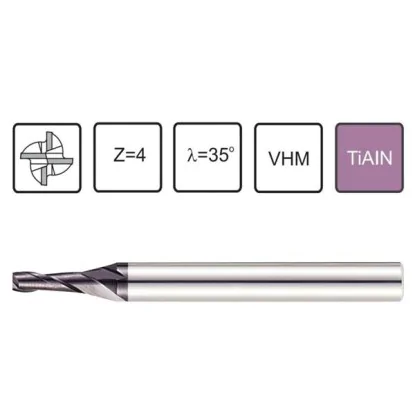

Forked cutter fi 1,5 VHM
VHM1.5 VHM milling cutter with reinforced shank D -1.5 mm diameter, Z-2 full face cylindrical carbide, with TiAIN coating, fine-grain universal carbide, with smooth DIN6535 HA cylindrical shank.
Carbide cutter 1.5 VHM forked cutter with diameter D-1.5 Z-2 of full-grain VHM (Vollhartmetall) carbide. It is a cutter with a cylindrical shank reinforced with DIN 6535 HA. Due to the high properties of carbide, the milling cutters offered in our store are suitable for machining hard materials such as alloy steels, stainless steel, heat-resistant steel, cast steel, cast iron and surface-hardened materials. The mills in question are suitable for conventional machine tools and modern machine tools with higher rigidity. VHM burrs are characterized by high chemical resistance, high resistance to abrasive wear, good adhesion to the substrate. Carbide milling cutters fi 1,5 are dedicated to both individual customers and large industrial workshops. The use of sintered carbide is recommended for copying, line machining, profiling, making channels and grooves.
