Turning tool TWLNL 20x20 Left - WNMG 0804 Smoxh
search
  • Turning tool TWLNL 20x20 Left - WNMG 0804 Smoxh
  • Turning tool TWLNL 20x20 Left - WNMG 0804 Smoxh - nr. 1
  • Turning tool TWLNL 20x20 Left - WNMG 0804 Smoxh - nr. 2
Smoxh

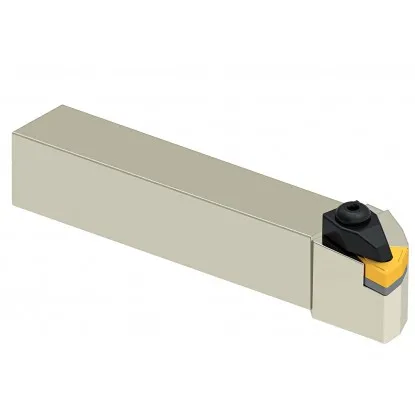

Turning tool TWLNL 20x20 08 Smoxh

Smoxh Smoxh
14988
Shank: 20x20 mm2 sizes of this turning tool
€50.17 tax inc.

Net price: €40.79

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

CROSS SECTION 20×20 mm
LENGTH 125 mm
INSERT WNMG 0804rr
ANGLE κr 95°

Technical specifications of the TWLNL 20x20 08 turning tool

Technical data
ISO designation TWLNL 20x20 08
Shank height (h) 20 mm
Shank width (b) 20 mm
Overall length (L) 125 mm
Functional overhang (f) 25 mm
Entering angle (κr) 95°
Clearance angle 0° (negative)
Clamping system ISO — top and through-hole clamping (T)
Insert type WNMG 0804rr
Cutting direction L — left-hand (R version available)
Manufacturer Smoxh

Turning tool TWLNL 20x20 08 – for longitudinal turning with light facing

20×20 mm indexable turning tool for a WNMG insert

Turning tool TWLNL 20x20 08 is an indexable turning tool designed for external turning on conventional and CNC lathes. The shank, with a cross section of 20×20 mm and a length of 125 mm, provides the rigidity required for industrial machining. The geometry with an entering angle of 95° allows turning along the wall with simultaneous light facing.

In the top and through-hole clamping system (T), the clamp secures the WNMG 0804rr insert from above and through its hole. The negative geometry of the 80° trigon insert with 6 cutting edges is suitable for roughing and medium machining, providing high cutting edge strength and cost efficiency through its double-sided design. The tool is compatible with WNMG 08 inserts in various carbide grades — select the grade to match the workpiece material.

Decoding the TWLNL designation of the TWLNL 20x20 08 turning tool

What the individual letters in the ISO designation mean

Decoding the designation TWLNL
T
Top and through-hole insert clamping (T)
CLAMPING
Top and through-hole clamping (T)
The clamp secures the insert from above and through its hole.
W
Insert shape: 80° trigon (W)
INSERT SHAPE
80° trigon 80°
WNMG insert — negative, double-sided, 6 edges (3 per side)
L
Entering angle κr 95°, top view of the tool head (L)
ENTERING ANGLE
κr = 95°
Longitudinal turning + facing
N
Clearance angle 0°, negative insert (N)
CLEARANCE ANGLE
α = 0° (neg.)
Negative geometry — double-sided inserts, edges on both sides
L
Left-hand orientation (L)
DIRECTION
Left-hand (L)
Feed to the right — from the spindle toward the tailstock
Shank: 20×20 mm · Insert: WNMG 0804rr

Typical applications of the TWLNL 20x20 08 turning tool

Cutting operations:

▸ Longitudinal turning — the 95° angle provides stable cutting along the workpiece axis with light facing
▸ Roughing and medium machining of steel and cast iron — negative WNMG geometry provides a stronger cutting edge and 2× as many edges
▸ Machining shafts and bushings — a general-purpose tool for external turning of rotational parts
▸ Taper turning — machining tapered surfaces on CNC and conventional lathes
▸ CNC production runs — quick insert replacement and repeatable positioning

Included

Package contents for TWLNL 20x20 08

Package contents:

✓ Tool body TWLNL 20x20 08 1 pcs
✓ Top clamp with screw 1 pcs
✓ Hex key for insert replacement 1 pcs
✗ WNMG 0804rr cutting insert (sold separately) —

Compatible WNMG 0804rr insert

WNMG 0804rr

The cutting insert is not included in the set — must be purchased separately. WNMG insert. Negative geometry means that the insert is double-sided and has 6 cutting edges, providing a stronger cutting edge and twice as many edges as a single-sided insert.

Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.

Insert installation and replacement for the TWLNL 20x20 08 turning tool

Instructions for top and through-hole clamping (T)

Insert replacement procedure step by step

1 Loosen the clamp

Loosen the clamp screw 2-3 turns

2 Clean the insert seat

Remove chips and debris

3 Install the insert

Position in the seat under the clamp

4 Tighten the clamp

Torque 0.6–1.2 Nm

Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.

Checks before starting work:

▸ Tool overhang — do not exceed 1.5× the shank height without support
▸ Cutting edge height — set the cutting edge at spindle centerline height
▸ Insert seat condition — check that the contact surface is not damaged or worn
▸ Secure clamping — the insert must have no play in the seat
▸ Indexing — when an edge wears out, rotate the insert to a fresh edge (6 edges in total)

Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.

Frequently asked questions — TWLNL 20x20 08

This tool accepts inserts WNMG 0804rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.

The entering angle of 95° provides stable longitudinal turning with light facing. A typical angle for general-purpose machining on CNC and conventional lathes.

The WNMG insert has negative geometry (clearance angle 0°), which means it is double-sided with 6 cutting edges. When one edge wears out, rotate or flip the insert to use the next edge — this significantly reduces tooling cost per part.
