Description
| Technical Data | |
|---|---|
| ISO designation | SRACL 20x20 K10 |
| Shank height (h) | 20 mm |
| Shank width (b) | 20 mm |
| Overall length (L) | mm |
| Entering angle (κr) | 90° |
| Clearance angle | 7° (pos.) |
| Clamping system | ISO — center screw (S) |
| Insert type | RCMT 1004rr |
| Cutting direction | L — left-hand |
| Manufacturer | Varel |

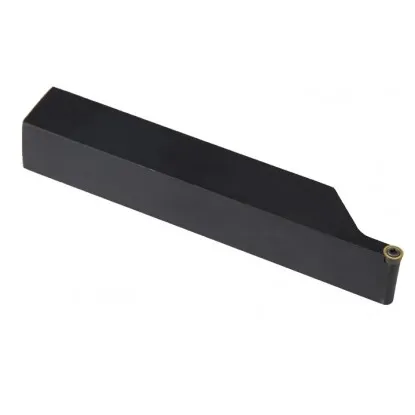

Professional 20×20 mm indexable turning tool for an RCMT insert
Turning tool SRACL 20x20 K10 is a professional turning tool designed for external turning on conventional and CNC lathes. The shank with a 20×20 mm cross section and a length of mm provides the rigidity required for industrial machining. The geometry with a 90° entering angle enables facing and longitudinal turning along a shoulder.
The central screw clamping system (S) ensures the highest cutting edge positioning repeatability and easy replacement of the RCMT 1004rr insert. The positive geometry of the round insert with a continuous cutting edge is well suited to finishing, ensuring low cutting forces and a smooth machined surface. The tool is compatible with RCMT 10 inserts in various carbide grades — select the grade to match the workpiece material.
Cutting operations:
| ▸ | Facing — the 90° angle provides uniform cutting of the end face |
| ▸ | Turning along shoulders — the right angle allows machining 90° corners |
| ▸ | Machining steel and cast iron materials — positive RCMT geometry provides low cutting forces |
| ▸ | Turning steps and flanges — precision machining of diameter transitions |
| ▸ | CNC production runs — repeatable cutting edge positioning and quick replacement |
Package contents for SRACL 20x20 K10
Package contents:
| ✓ | Tool body SRACL 20x20 K10 | 1 pcs |
| ✓ | Center screw for clamping the insert | 1 pcs |
| ✓ | Hex key for insert replacement | 1 pcs |
| ✗ | RCMT 1004rr cutting insert (sold separately) | — |
RCMT 1004rr
The cutting insert is not included in the set — must be purchased separately. RCMT insert. Positive geometry means that the insert is single-sided and has a continuous cutting edge, providing low cutting forces and good surface quality.
Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.
Instructions for the center screw clamping system (S)
Unscrew the center screw 2-3 turns
Remove chips and debris
Position in the seat
Torque 1.5–2.5 Nm
Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.
Checks before starting work:
| ▸ | Tool overhang — do not exceed 1.5× the shank height without support |
| ▸ | Cutting edge height — set the cutting edge at spindle center height (±0.05 mm) |
| ▸ | Insert seat condition — check that the contact surface is not damaged or worn |
| ▸ | Secure clamping — the insert must have no play in the seat |
Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.
This tool accepts inserts RCMT 1004rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.
The entering angle of 90° provides facing perpendicular to the axis and turning along shoulders. Ideal for machining flanges, steps, and right angles on the workpiece.
Select the grade according to the ISO material group: P (non-alloy and alloy steels), M (stainless and heat-resistant steel), K (gray and ductile cast iron), N (aluminum and non-ferrous metals). Grades labeled "universal" are suitable for most applications.
