Description
CROSS SECTION 25×25 mm
LENGTH 150 mm
INSERT VNMG 1604rr
ANGLE κr 93°

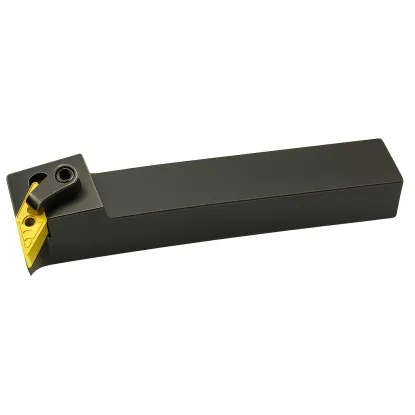

Technical specifications of the MVUNR 25x25 M16 turning tool
| Technical Data | |
|---|---|
| ISO designation | MVUNR 25x25 M16 |
| Shank height (h) | 25 mm |
| Shank width (b) | 25 mm |
| Overall length (L) | 150 mm |
| Functional overhang (f) | 25 mm |
| Entering angle (κr) | 93° |
| Clearance angle | 0° (negative) |
| Clamping system | ISO — combination (M) |
| Insert type | VNMG 1604rr |
| Cutting direction | R — right-hand |
| Manufacturer | Varel |
MVUNR 25x25 M16 turning tool – for longitudinal turning with light facing
Professional 25×25 mm indexable turning tool for a VNMG insert
Turning tool MVUNR 25x25 M16 is a professional turning tool designed for external turning on conventional and CNC lathes. The shank, with a cross section of 25×25 mm and a length of 150 mm, provides the rigidity required for industrial machining. The geometry with an entering angle of 93° allows turning along the wall with simultaneous light facing.
The combination clamping system (M) ensures maximum clamping rigidity and quick replacement of the VNMG 1604rr insert. The negative geometry of the 35° rhombic insert with 4 cutting edges is suitable for roughing and medium machining, providing high cutting edge strength and cost efficiency thanks to its double-sided design. The tool is compatible with VNMG 16 inserts in various carbide grades — select the grade to match the workpiece material.
Typical applications of the MVUNR 25x25 M16 turning tool
Cutting operations:
| ▸ | Longitudinal turning — the 93° angle provides stable cutting along the workpiece axis with light facing |
| ▸ | Roughing and medium machining of steel and cast iron — negative VNMG geometry provides maximum cutting edge strength and 2× as many edges |
| ▸ | Machining shafts and bushings — a general-purpose tool for external turning of rotational parts |
| ▸ | Taper turning — machining tapered surfaces on CNC and conventional lathes |
| ▸ | CNC production runs — quick insert replacement and repeatable positioning |
Included
Package contents for MVUNR 25x25 M16
Package contents:
| ✓ | Tool body MVUNR 25x25 M16 | 1 pcs |
| ✓ | Combination clamp (clamp + pin) | 1 pcs |
| ✓ | Hex key for insert replacement | 1 pcs |
| ✗ | VNMG 1604rr cutting insert (sold separately) | — |
Compatible VNMG 1604rr insert
VNMG 1604rr
The cutting insert is not included in the set — must be purchased separately. VNMG insert. Negative geometry means that the insert is double-sided and has 4 cutting edges, providing maximum cutting edge strength and cost efficiency.
Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.
Insert installation and replacement for the MVUNR 25x25 M16 turning tool
Instructions for the combination clamping system (M)
Insert replacement procedure step by step
1 Loosen the clamp
Loosen the clamping screw 2-3 turns
2 Clean the insert seat
Remove chips and debris
3 Install the insert
Fit onto the pin and press down
4 Tighten the clamp
Torque 2.0–3.5 Nm
Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.
Checks before starting work:
| ▸ | Tool overhang — do not exceed 1.5× the shank height without support |
| ▸ | Cutting edge height — set the cutting edge at spindle center height (±0.05 mm) |
| ▸ | Insert seat condition — check that the contact surface is not damaged or worn |
| ▸ | Secure clamping — the insert must have no play in the seat |
| ▸ | Indexing — when an edge wears out, rotate the insert to a fresh edge (4 edges in total) |
Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.
Frequently asked questions — MVUNR 25x25 M16
This tool accepts inserts VNMG 1604rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.
The entering angle of 93° provides stable longitudinal turning with light facing. The most popular angle for general-purpose machining on CNC and conventional lathes.
The VNMG insert has negative geometry (clearance angle 0°), which means it is double-sided with 4 cutting edges. When one edge wears out, rotate or flip the insert to use the next edge — this significantly reduces tooling cost per part.
Product accessories
Carbide insert VNMG 160404 HS H6310 Horn
Reference: 0000009634 In stock > 10 items
€7.11
€8.74 brutto
Carbide insert VNMG 160408 HS H6310 Horn
Reference: 0000009635 In stock > 10 items
€7.11
€8.74 brutto
Reviews
No customer reviews for the moment.
