Description
CROSS SECTION 16×16 mm
LENGTH 100 mm
INSERT WNMG 0604rr
ANGLE κr 50°
Technical specifications of the MWDNN 16x16 H06 turning tool
| Technical data | |
|---|---|
| ISO designation | MWDNN 16x16 H06 |
| Shank height (h) | 16 mm |
| Shank width (b) | 16 mm |
| Overall length (L) | 100 mm |
| Functional overhang (f) | 8 mm |
| Entering angle (κr) | 50° |
| Clearance angle | 0° (negative) |
| Clamping system | ISO — combination (M) |
| Insert type | WNMG 0604rr |
| Cutting direction | N — neutral (both directions) |
| Manufacturer | Smoxh |

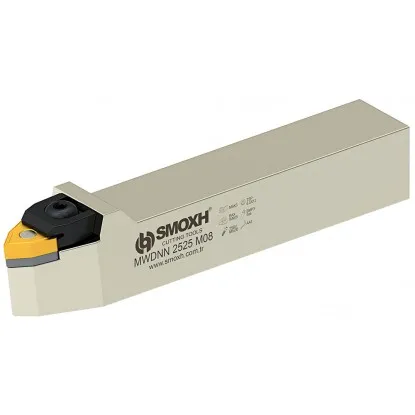

MWDNN 16x16 H06 turning tool – for longitudinal turning and facing
16×16 mm indexable turning tool for a WNMG insert
Turning tool MWDNN 16x16 H06 is an indexable turning tool designed for external turning on conventional and CNC lathes. The shank, with a cross section of 16×16 mm and a length of 100 mm, provides the rigidity required for industrial machining. The geometry with an entering angle of 50° allows simultaneous longitudinal turning and angled facing.
In the combination clamping system (M), the WNMG 0604rr insert is held simultaneously by a top clamp and a pin in its hole. The negative geometry of the 80° trigon insert with 6 cutting edges is well suited to roughing and medium machining, providing high cutting edge strength and cost efficiency thanks to its double-sided design. The tool is compatible with WNMG 06 inserts in various carbide grades — select the grade to match the workpiece material.
Decoding the MWDNN designation of the MWDNN 16x16 H06 turning tool
What the individual letters in the ISO designation mean
Decoding the designation MWDNN
M
CLAMPING
Combination (M)
The top clamp and pin secure the insert simultaneously
W
INSERT SHAPE
80° trigon 80°
WNMG insert — negative, double-sided, 6 edges (3 per side)
D
ENTERING ANGLE
κr = 50°
Insert positioned symmetrically about the shank axis; κr = 50°.
N
CLEARANCE ANGLE
α = 0° (neg.)
Negative geometry — double-sided inserts, edges on both sides
N
DIRECTION
Neutral (N)
Operation in both directions — neutral tool
Shank: 16×16 mm · Insert: WNMG 0604rr
Typical applications of the MWDNN 16x16 H06 turning tool
Cutting operations:
| ▸ | Longitudinal turning with facing — the 50° angle allows simultaneous cutting along the axis and facing |
| ▸ | Roughing and medium machining — negative WNMG geometry provides a stronger cutting edge |
| ▸ | Chamfering and external tapers — angled cutting edge for chamfers and tapers |
| ▸ | Turning steps and shoulders — machining cylindrical surfaces with changes in diameter |
| ▸ | CNC production runs — quick insert replacement and repeatable positioning |
Included
Package contents for MWDNN 16x16 H06
Package contents:
| ✓ | Tool body MWDNN 16x16 H06 | 1 pcs |
| ✓ | Combination clamp (clamp + pin) | 1 pcs |
| ✓ | Hex key for insert replacement | 1 pcs |
| ✗ | WNMG 0604rr cutting insert (sold separately) | — |
Compatible WNMG 0604rr insert
WNMG 0604rr
The cutting insert is not included in the set — must be purchased separately. WNMG insert. Negative geometry means that the insert is double-sided and has 6 cutting edges, providing a stronger cutting edge and twice as many edges as a single-sided insert.
Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.
Insert installation and replacement for the MWDNN 16x16 H06 turning tool
Instructions for combination clamping (M)
Insert replacement procedure step by step
1 Loosen the clamp
Loosen the clamping screw 2-3 turns
2 Clean the insert seat
Remove chips and debris
3 Install the insert
Fit onto the pin and press down
4 Tighten the clamp
Torque 0.8–1.5 Nm
Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.
Checks before starting work:
| ▸ | Tool overhang — do not exceed 1.5× the shank height without support |
| ▸ | Cutting edge height — set the cutting edge at spindle centerline height |
| ▸ | Insert seat condition — check that the contact surface is not damaged or worn |
| ▸ | Secure clamping — the insert must have no play in the seat |
| ▸ | Indexing — when an edge wears out, rotate the insert to a fresh edge (6 edges in total) |
Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.
Frequently asked questions — MWDNN 16x16 H06
This tool accepts inserts WNMG 0604rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.
The entering angle of 50° allows simultaneous longitudinal turning and facing. Suitable for machining chamfers, tapers and transitions between diameters.
The WNMG insert has negative geometry (clearance angle 0°), which means it is double-sided with 6 cutting edges. When one edge wears out, rotate or flip the insert to use the next edge — this significantly reduces tooling cost per part.
