Description
Technical data of conical countersink fi 63 mm 120 degrees
| Technical data | |
|---|---|
| Blade angle | 120 degrees |
| Maximum bore diameter D | fi 63 mm |
| Minimum bore diameter D1 | 20 mm |
| Morse taper No | 4 |
| Total length L | 185 mm |
| Length of Working Part l | 43 mm |
| Number of Blades Z | 3 |
| Material | HSS high-speed steel |
| Product | Polish |
Cutting parameters for countersink fi 63 mm 120 degrees
| ISO Symbol | Material | Vc [m/min] | Feed fz [mm/ostrze] | n [obr/min] | Total feed rate f [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 18 | 0,06 | 91 | 16 |
| M | Stainless steel | 10 | 0,03 | 51 | 5 |
| K | Cast iron | 8 | 0,04 | 40 | 5 |
| N | Aluminum | 50 | 0,12 | 253 | 91 |

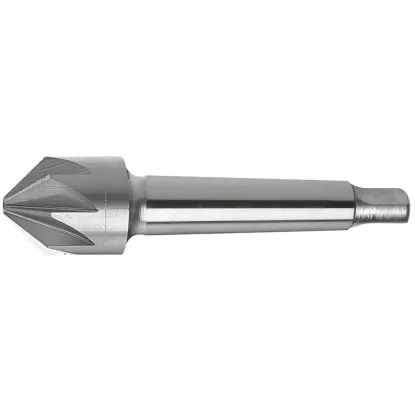

Tapered countersink fi 63 mm 120 degrees DIN 347 B HSS is a specialized cutting tool designed for machining holes at an angle of one hundred and twenty degrees. Thanks to its solid Morse shank with a fin, it provides secure clamping and stable operation on both conventional drills and modern CNC machines.
The fi 63 mm 120-degree tapered countersink is made of highly resistant HSS, guaranteeing durability and high resistance to abrasion and overheating. The tool retains its cutting properties even at temperatures as high as six hundred degrees Celsius, which allows machining with high efficiency while maintaining precision.
Three ground working blades stabilize the cutting process, which ensures uniform countersinking and a high-quality surface finish. The high-quality surface facilitates chip evacuation and reduces the risk of workpiece sticking. The conical metal countersink is ideal for working with P1.2 - P1.3 grade materials, including stainless steel, copper alloys, aluminum and plastics.
- Three working blades - ensure stability, precision and efficiency of the cutting process.
- HSS high-speed steel - guarantees long tool life even in difficult machining conditions.
- Morse shank with flipper - ensures secure clamping of the tool in the machine chuck.
- Heat resistance up to six hundred degrees - allows working at high cutting speeds without loss of quality.
The conical countersink fi 63 mm 120 degrees for stainless steel is a reliable tool for industrial plants looking for efficient and durable solutions for advanced machining.
