Tap Trapezoidal Tr 22X5 for DIN 103 steel - nr. 1
search
  • Tap Trapezoidal Tr 22X5 for DIN 103 steel - nr. 1
  • Tap Trapezoidal Tr 22X5 for DIN 103 steel - nr. 2
  • Tap Trapezoidal Tr 22X5 for DIN 103 steel - nr. 3

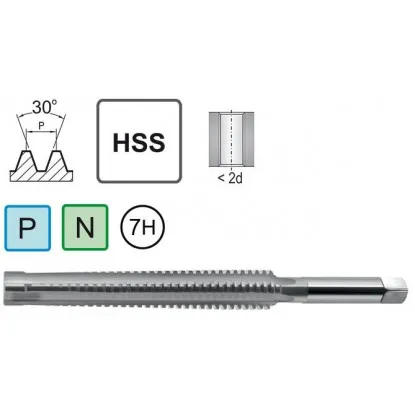

Tap Trapezoidal Tr 22X5 HSS DIN 103 7H Varel

Varel Varel
0000006815
€158.61 tax inc.

Net price: €128.95

Instant Shipping
In stock 9 pcs.
In stock 9 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of machine threader Tr 22x5

Technical data
Thread diameter d1 Tr 22x5 mm
Thread pitch P 5 mm
Total length l1 280 mm
Working length l2 140 mm
Shank diameter d2 17 mm
Length of shank square a 13 mm
Threaded hole diameter 17 mm
Gwintownik trapezowy rysunek

Tap Trapezoidal Tr 22x5 HSS DIN 103 7H is a heavy-duty machine tool designed for precision cutting of trapezoidal threads with a pitch of 5 mm. It is designed in accordance with DIN 103 and made of high-grade HSS, which guarantees long life, wear resistance and stable operation under production conditions.

Tr 22x5 threads are used in mechanisms that carry significant axial loads, m.in. in screw actuators, lifting systems and positioning systems. The 5mm stroke provides efficient linear travel while maintaining the required accuracy. The 7H tolerance enables precise fits, which is crucial in serial processes.

Tap Trapezoidal Tr 22x5 HSS DIN 103 7H is designed for use on conventional lathes and CNC machine tools. The tool works well in machining materials such as structural steel, bronze, aluminum and other non-ferrous metals.

  • Stable geometry - ensures repeatability of the threading process and safety of work.
  • High abrasion resistance - HSS steel guarantees durability even with intensive use.
  • Stroke of 5 mm - optimal for drive applications and linear movements with higher loads.
  • Precise design - compliance with DIN 103 and 7H tolerance enables exact fit.
