Description
| Technical data | |
|---|---|
| Nominal diameter d1 | M2,2 |
| Thread pitch P | 0,45 mm |
| Total length l1 | 50 mm |
| Length of Working Part l2 | 13 mm |
| Diameter of the Grip Part | 1,6 mm |
| Shank diameter B | (3,5÷5) P |
| Diameter of Threaded Hole | 8.5 mm |

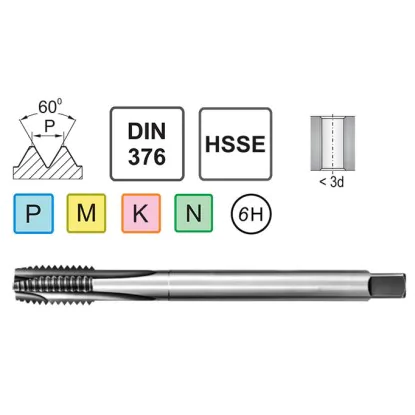

Machine Tap through cut M2,2
Machine Tap through-hole M2,2 is a precision cutting tool designed for cutting metric internal threads in through-holes. Made of high-grade HSSE cobalt high-speed steel, it provides excellent wear resistance, long service life and stable operation even when machining difficult-to-cut materials such as stainless steel, alloy steels and non-ferrous metals.
The taps are designed in accordance with DIN 376 B, which means an elongated working section and a full-size shank cross-section for greater rigidity and better guidance in deeper holes. Machine Tap M2.2 for stainless steel performs threads in ISO2 6H tolerance, guaranteeing precision and full compliance with industry standards.
Benefits:
- HSSE steel - increased durability and resistance to high temperatures and tool wear.
- M2.2 thread - used in micromechanics, electronics and precision assembly systems.
- DIN 376 - provides an elongated working part and increased tool rigidity.
- ISO2 6H tolerance - enables accurate, repeatable metric threads.
- Geometry for through-holes - effectively drains chips for a clean finish.
Machine Tap the M2.2 through-hole is a reliable solution for professionals looking for a precise, durable and compliant tool for machining fine threads in a wide range of technical materials.
