Description
- width of the shank H -40 mm,
- height of the shank B - 40 mm,
- total length L - 200 mm,
- working height f - 50 mm,

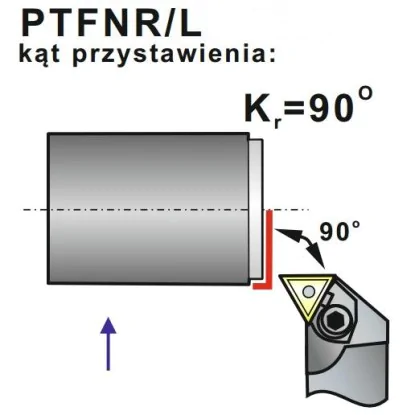

- angle of attachment - 90 degrees
- cutting insert -TNMG220408
PTFNR 40x40 fold ingturning knife - "P" insert mounting system.
Double-sided interchangeable inserts (the angle of application of the insert is 0 degrees), triangular, square and rhombic, are fixed on the surface of the cylindrical bore with a pin, a clamping wedge and a screw. PTFNR 40x40-22 folding turning knives with inserts fixed in the "P" system are used for roughing. The "P" system is characterized by easy insert change, no loose clamping elements.
* The cutting insert shown in the picture is not included in the lathe knife, it must be purchased separately
