Description
Technical data of the hand tapping machine M12x1,25
| Technical data | |
|---|---|
| Nominal diameter d1 mm | M12 |
| Thread pitch P mm | 1,25 mm |
| Overall length l1 | 70 mm |
| Length of working part l2 | 20 mm |
| Diameter of the shank part d2 | 9 mm |
| Size of square drive a | 7 mm |
| Threaded bore diameter | 10.8 mm |
| Thread angle G | 60 degrees |
| Thread standard | ISO DIN 13 |
| Thread tolerance | ISO2 6H |
M12x1.25 fine-coil hand taps
Hand Tap M12x1.25 for making metric fine-coil internal threads with a pitch of 1.25 mm and a profile of 60 degrees; in joints with limited technical clearance, hand Tap M12x1.25 provides a stable fit and an even fullness of the coil.
2-piece set: ripper (long nut) and finisher (short nut) for sequential load control; straight chip grooves for predictable chip evacuation; square shank for knob. Made of HSS with high resistance to varying loads; 6H grade female thread (pairs with 6g). Compatibility: ISO 68-1 (60-degree outline), ISO 261/262 (M-system and strokes), ISO 965 (tolerances), handmade to DIN 352. Recommended drill bit: 10.75 mm. Recommended media: low viscosity coolant.
- Dimensional accuracy - Class 6H maintains required assembly clearance and repeatable coil geometry.
- Safe sequence - two-stage guidance distributes torque on the blade; set Taps hand-held M12x1.25 facilitates control in thin-walled workpieces.
- Long life - HSS enables sharpening and stabilizes surface roughness under varying loads.
- Predictable chip evacuation - straight grooves promote back-to-turn cycles, reducing jamming and edge snagging.
The M12x1.25 Hand Tapping Set in a 2-piece configuration, with a 6H tolerance and 60-degree outline, maintains repeatable thread geometry in precision applications as a M12x1.25 Hand Tapping Set.

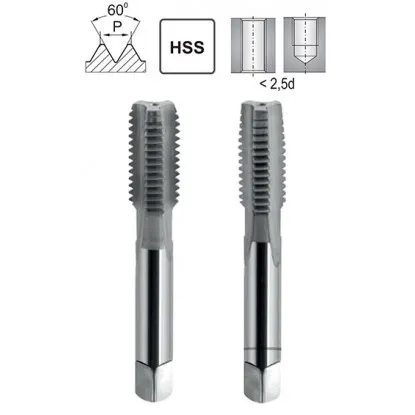

M12x1.25 thread cutting stages in 2-piece set: ripper and finisher
Frequently asked questions
1. Of how many parts does set Taps M12x1,25 hand threaders consist?
The set includes two threaders - the first a ripper for pre-cutting, and the second a finisher for final thread forming.
2. Are the M12x1.25 hand taps suitable for blind holes?
Yes, the set is designed for threading in both through-holes and blind holes.
3. What materials can be threaded with a set of M12x1.25 hand taps?
M12x1.25 HSS hand taps work well in machining low-carbon steel, aluminum alloys, brass and other metals with good machinability.
Product accessories
Tapered countersink 16.5/90 DIN 335 C HSS
Reference: 11247 In stock > 10 items
€9.47
€11.65 brutto
