Net price: €21.05
Description
NRNb — HSS shell finishing reamer DIN 219
| Technical Data | |
|---|---|
| Cutting diameter D | Ø25 H7 (25.000–25.021 mm) |
| Mounting bore diameter d (taper 1:30) | 13 mm |
| Flute length l | 32 mm |
| Overall length L | 45 mm |
| Number of teeth Z | 8 |
| Type | NRNb — shell finishing reamer |
| Dimensional standard | DIN 219 |
| Material | HSS (high-speed steel) |

| Class | Deviations [mm] | Dimension [mm] | |
|---|---|---|---|
| H6 | +0.013 / 0 | 25.000 – 25.013 | |
| H7 | +0.021 / 0 | 25.000 – 25.021 | SELECTED |
| H8 | +0.033 / 0 | 25.000 – 25.033 | |
| H9 | +0.052 / 0 | 25.000 – 25.052 |
The reamed hole falls within the tolerance zone 25.000–25.021 mm (ISO 286-2) — an accuracy level typical of dowel pin holes and sliding fits, among other applications.
Indicative values Ø25 mm Z = 8
| Material group (ISO 513) | Vc [m/min] | fz [mm/tooth] | n [rpm] Ø25 | f [mm/min] Z=8 |
|---|---|---|---|---|
| PStructural and carbon steel | 8–10 | 0.16–0.20 | 102 | 131 |
| MStainless steel | 2–3 | 0.16–0.20 | 25 | 32 |
| KCast iron | 3–5 | 0.16–0.20 | 38 | 49 |
| NAluminum and light alloys | 12–16 | 0.20–0.24 | 153 | 245 |
Vc — cutting speed, fz — feed per tooth (catalog values for HSS, selected for a diameter of Ø25 mm). Spindle speeds were calculated for the lower end of the range: n = (Vc × 1000) ÷ (π × D), feed rate per minute f = fz × Z × n for Z = 8. Start with the lower values and adjust according to the material and clamping rigidity.
You may also need: Cutting parameters calculator
Hole finishing to H7 tolerance

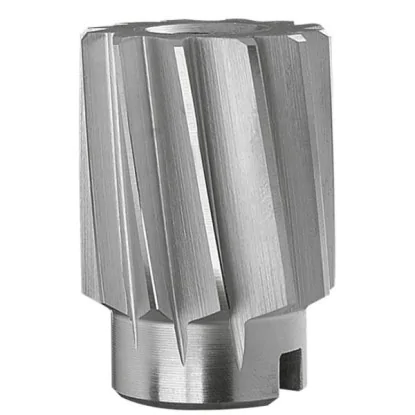

Shell reamer Ø25 H7 for metal — NRNb shell finishing reamer according to DIN 219 made of high-speed steel (HSS) HSS, mounted on an arbor through a tapered mounting bore Ø13 mm (1:30). The shell design allows economical finishing of large-diameter holes to tolerance H7 — one arbor accommodates multiple heads. The tool face has a ~45° lead-in chamfer for centered entry, while the guide margins on the cutting edges keep the tool aligned with the hole axis.
The 25 H7 shell reamer for metal removes the allowance left after drilling and brings the hole to its final size within the tolerance zone H7 (25.000–25.021 mm). The tool aligns the hole axis, improves roundness and cylindricity, and reduces surface roughness to approx. Ra 0.4–1.6 µm. 8 unequally spaced cutting edges reduce vibration and machining marks. Larger diameters are used for bearing and bushing seats and holes in machine housings, where dimensional stability over the entire length is essential. Suitable as a reamer for steel, cast iron, and nonferrous metals — HSS retains its hardness and wear resistance even at elevated cutting temperatures.
Workpiece materials
Drill a hole Ø24.7 mm — stock allowance of approx. 0.3 mm on the diameter. Too little allowance causes the material to be compressed rather than cut; too much overloads the cutting edges and reduces hole accuracy.
On a shell reamer arbor with a 1:30 taper and a Ø13 mm spigot, with a Morse taper shank at the other end. The arbor drive transmits torque to the head.
The hole falls within the tolerance zone 25.000–25.021 mm, and surface roughness is approx. Ra 0.4–1.6 µm — this accuracy is sufficient for sliding fits and dowel pin holes.
Reference: 793706 In stock > 10 items
€38.84 brutto
