Net price: €157.89
Description

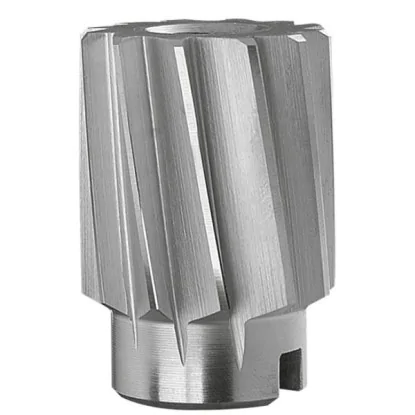

NRNb — shell finishing reamer, HSS DIN 219A
| Technical Data | |
|---|---|
| Cutting diameter D | Ø105 H7 (105.000–105.035 mm) |
| Mounting bore diameter d (taper 1:30) | 40 mm |
| Flute length l | 50 mm |
| Overall length L | 80 mm |
| Type | NRNb — shell finishing reamer |
| Dimensional standard | DIN 219A |
| Material | HSS (high-speed steel) |

| Class | Deviations [mm] | Dimension [mm] | |
|---|---|---|---|
| H6 | +0.022 / 0 | 105.000 – 105.022 | |
| H7 | +0.035 / 0 | 105.000 – 105.035 | SELECTED |
| H8 | +0.054 / 0 | 105.000 – 105.054 | |
| H9 | +0.087 / 0 | 105.000 – 105.087 |
The reamed hole falls within the tolerance zone 105.000–105.035 mm (ISO 286-2) — an accuracy level typical of dowel pin holes and sliding fits, among other applications.
Indicative values for Ø105 mm
| Material group (ISO 513) | Vc [m/min] | fz [mm/tooth] | n [rpm] Ø105 |
|---|---|---|---|
| PStructural and carbon steel | 8–10 | 0.40 | 24 |
| MStainless steel | 2–3 | 0.40 | 6 |
| KCast iron | 3–5 | 0.40 | 9 |
| NAluminum and light alloys | 12–16 | 0.40 | 36 |
Vc — cutting speed, fz — feed per tooth (catalog values for HSS, selected for a diameter of Ø105 mm). Spindle speeds were calculated for the lower end of the range: n = (Vc × 1000) ÷ (π × D). Start with the lower values and adjust according to the material and clamping rigidity.
You may also need: Cutting parameters calculator
Hole finishing to H7 tolerance
Shell reamer Ø105 H7 for metal — NRNb shell finishing reamer according to DIN 219A made of high-speed steel (HSS) HSS, mounted on an arbor through a tapered mounting bore Ø40 mm (1:30). The shell design allows economical finishing of large-diameter holes to tolerance H7 — one arbor accommodates multiple heads. The tool face has a ~45° lead-in chamfer for centered entry, while the guide margins on the cutting edges keep the tool aligned with the hole axis.
The 105 H7 shell reamer for metal removes the allowance left after drilling and brings the hole to its final size within the tolerance zone H7 (105.000–105.035 mm). Reaming straightens the hole axis, improves roundness and cylindricity, and reduces surface roughness to approx. Ra 0.4–1.6 µm. Larger diameters are used for bearing and bushing seats and holes in machine housings, where consistent dimensions along the entire length are essential. Suitable for reaming steel, cast iron, and nonferrous metals — HSS retains its hardness and wear resistance even at elevated cutting temperatures.
Workpiece materials
Drill a hole Ø104.5 mm — stock allowance of approx. 0.5 mm on the diameter. Too little allowance causes the material to be compressed rather than cut; too much overloads the cutting edges and reduces hole accuracy.
On a shell reamer arbor with a 1:30 taper and a Ø40 mm spigot, with a Morse taper shank at the other end. The arbor drive transmits torque to the head.
The hole falls within the tolerance zone 105.000–105.035 mm, and surface roughness is approx. Ra 0.4–1.6 µm — this accuracy is sufficient for sliding fits and dowel pin holes.
