Description
Technical data of extra long drill fi 5
| Technical data | |
|---|---|
| Working diameter of drill d | fi 5 mm |
| Overall length l1 | 245 mm |
| Length of working part l2 | 170 mm |
Cutting parameters of extra long drill fi 5 mm HSS NWKp
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Revolutions n [obr/min] | Total feed rate [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 12-21 | 0,06 | 764 | 46 |
| K | Cast iron | 10-15 | 0,06 | 637 | 38 |
| Copper and alloys | 12-25 | 0,08 | 764 | 61 |
May be useful
Cutting parameters calculator

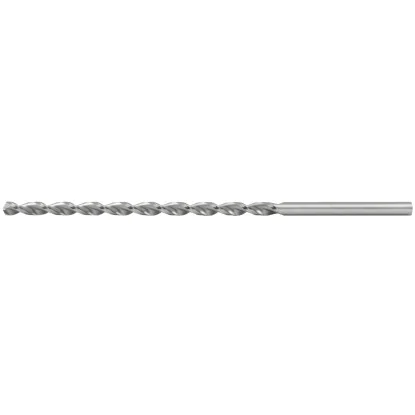

Extra long drill bit for metal 5
Drill bits very longfor metal fi 5 twist extra long with cylindrical shank for steel and cast iron of general use. The recommended use is for making deep holes, or when greater tool overhang is required. Application in: carbon steel, auto steel, structural steel, gray iron, aluminum bronze, new silver Cu Zn Ni alloy, gray iron, tin-zinc bronze, electronic copper malleable brass. It is acceptable to drill in alloy steel which has a tensile limit Rm 1200 N/mm2, zinc alloy, zinc, malleable cast iron. Long drills for metal fi 5 twist very long with cylindrical shank for steel and cast iron of general use. The recommended use is for making deep holes, or when a larger tool overhang is required. Use in: carbon steel, auto steel, structural steel, gray iron, aluminum bronze, new silver Cu Zn Ni alloy, gray iron, tin-zinc bronze, electronic copper malleable brass. High-performance drilling; precision, heavy-duty drilling.
Product accessories
Metal drill bit 5 extra long 315/210 HSS DIN 1869
Reference: 0000004135 In stock < 10 items
€5.79
€7.12 brutto
Metal drill bit 4.5 extra long 235/160 HSS DIN 1869
Reference: 0000007927 In stock < 10 items
€3.68
€4.53 brutto
Metal drill bit 5 extra long 195/135 HSS DIN 1869
Reference: 0000007928 In stock > 10 items
€3.16
€3.88 brutto
Metal drill bit 5.5 extra long 260/180 HSS DIN 1869
Reference: 10635 In stock > 10 items
€4.21
€5.18 brutto
