Carbide insert SPKN 1203 EDTR YG612 YG-1 - For steel, hardened steels
search
  • Carbide insert SPKN 1203 EDTR YG612 YG-1 - For steel, hardened steels
  • Carbide insert SPKN 1203 EDTR YG612 YG-1 - For steel, hardened steels - nr. 1
Artykuły Techniczne

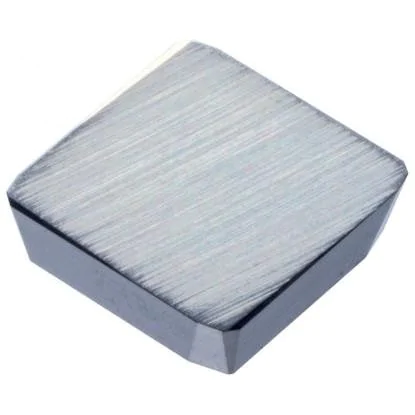

Carbide insert SPKN 1203 EDTR YG612 YG-1

Artykuły Techniczne Artykuły Techniczne
00796
Cutting edge length: 123 sizes of this insert
€10.36 tax inc.

Net price: €8.42

Instant Shipping
W magazynie: 3 pcs.
W magazynie: 3 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

SPKN 1203 milling insert – square 75° wiper insert

Technical data
Shape Square (S)
Side length l 12.70 mm
Insert thickness s 3.18 mm
Dimension m 0.90 mm
Entering angle κ 75°
Cutting direction right-hand (R)
ANSI code SPKN 42
Grade YG612 (YG-1)
Square SPKN 1203 EDTR milling insert, grade YG612, without a hole, with a wiper edge

SPKN indexable insert for face milling — cutting data

face milling — indicative family ranges according to ISO 513, by analogy with face mills

MaterialVc [m/min]Feed fz [mm/tooth]Depth ap [mm]Width ae [% D]
PSteel, cast steel 150-220 0.10-0.22 0.5-3.0 60-80

Square YG612 cemented carbide insert – design and applications

single-sided, positive, without a hole, with a wiper edge at the corner

The SPKN 1203 EDTR milling insert is a single-sided, square indexable insert made of grade YG612 cemented carbide from the Korean company YG-1. Its four corners operate at an entering angle of seventy-five°, making the insert suitable for face mills. The design is positive, with an eleven° clearance angle, and has no hole or chip breaker. It is secured in the milling head pocket with a wedge or top clamp. A ground wiper land at each corner smooths the bottom of the path left by the milling cutter. This design originates from ISO 3365 and GOST standards, widely used in Polish machine shops. Grade YG612 from YG-1 is intended for machining steel and cast steel at increased cutting parameters.

Key benefits of the YG612 cemented carbide insert

  • Four cutting edges — the square provides 4 usable corners; once an edge wears out, rotate the insert in its pocket without replacing the entire milling head.
  • Wiper edge at the corner — the ground land smooths the bottom of the pass and reduces the roughness of the face-milled surface.
  • Positive 11° geometry — lower cutting forces and power consumption during face milling, with less vibration on thinner workpieces.
  • The 75° entering angle distributes the edge load and promotes smooth entry into the material during face milling.
  • The hole-free, wedge-clamped design provides a full, uninterrupted cutting edge along the entire side length.
  • Dimensions follow traditional ISO 3365 and GOST standards: side length 12.70 mm, thickness 3.18 mm — compatible with 75° milling heads with SPKN 1203 pockets.

Applications and milling data selection

The square profile and wiper land make the SPKN 1203 insert suitable for face milling flat surfaces on conventional milling machines and CNC machine tools. For the land to smooth the surface effectively, the feed per revolution of the milling head should not exceed sixty percent of the wiper edge width. Manufacturer YG-1 does not specify this width in the available description, so it must be confirmed in the insert data sheet. Then calculate the limit using f_rev,max = 0.6·b_s and divide it by the number of active cutting edges to determine the feed per tooth.

The indexable insert performs well when machining structural steel and cast steel. Calculate spindle speed using n = 1000·Vc/(π·D): for a milling head with a diameter of 63 mm at a cutting speed of 180 m/min, the result is approximately 910 rpm. Use climb milling when table backlash has been eliminated, as the cutting edge then enters at the thicker part of the chip and stays sharp longer. For cast steel, reduce the cutting speed to the lower end of the range to limit abrasive wear on the edge. Emulsion cooling maintains consistent chip evacuation when face milling larger surfaces.

▲
Application limitation

Insert SPKN 1203 works only in face mills with an entering angle of 75° — it does not fit 90° shoulder milling heads, which require inserts TPKN, or 45° face mills for inserts SEKN/SEAN/SEKR.

Square insert designation decoder according to ISO 1832

how to read the SPKN 1203 EDTR code — positions 1–10 of the designation

Designation SPKN 1203 EDTR according to the standard ISO 1832: 4 letters describe the geometry and construction, 2 numeric codes describe the dimensions, and the suffix EDTR — the wiper edge geometry. Each field has a number, an icon and a brief description.

ISO 1832 designation decoder — how to read the code

1Sshape 2Pangle α 3Ktolerance 4Ntype – 512size 603thickness – 7Eangle κ 8Dland α′ 9Tedge 10Rhand

Positions 1–3 · ISO code

1SShape

Square 90°

4 corners of 90° per side

2PClearance angle

α = 11°

positive, single-sided

3KTolerance

Class K (precision)

ground thickness ±0.025 mm

Positions 4–6

4NType

Without hole or chip breaker

clamp or wedge mounting

512Size

l = 12.7 mm

IC = 12.7 mm (square: IC = l)

603Thickness

s = 3.18 mm

between rake faces

EDTR suffix · wiper edge

7EEntering angle

κ = 75°

75° face milling heads

8DWiper land

α′ = 15°

wiper land clearance angle

9TEdge condition

Chamfered (T-land)

the chamfer strengthens the edge during roughing

10RHand

Right-hand

standard clockwise spindle rotation

✓ 4 corners × 1 side = 4 cutting edges

Full designation: SPKN 1203 EDTR = square 90° · positive 11° · class K · without a hole or chip breaker · IC 12.7 mm (l 12.7 mm) · s 3.18 mm · κ 75° · wiper land 15° · chamfered edge · right-hand (R)

Compatible milling heads

SPKN 1203 pocket — face mills with an entering angle of 75°

Milling head / holder typeAngle κSPKN 1203 insert
FWT 75° face mill 75° ✔ compatible
Darmet FB75SP15 milling head 75° ✔ compatible
90° shoulder milling head 90° ✗ requires TPKN
45° face mill 45° ✗ requires SEKN/SEAN/SEKR

Frequently asked questions about the SPKN 1203 insert

geometry, milling head selection, and face milling parameters

Four — a square has 4 corners, and the positive, single-sided geometry means the insert cuts only with its top face. Once a corner wears out, rotate the insert in its pocket to the next edge without replacing the entire milling head.

For face mills with an entering angle of 75°, for example FWT 75° or Darmet FB75SP15. It does not fit shoulder milling heads 90° (which require TPKN inserts) or face mills 45° (SEKN/SEAN/SEKR).

E = corner entering angle 75°, D = wiper land clearance angle 15°, T = chamfered edge (T-land), R = right-hand version.

The feed per revolution of the milling head should not exceed 60% the width of the wiper edge. The land width must be confirmed in the YG-1 data sheet, as it is not specified in the available description. Calculate the limit as f_rev,max = 0.6·b_s, then divide the result by the number of active cutting edges.
