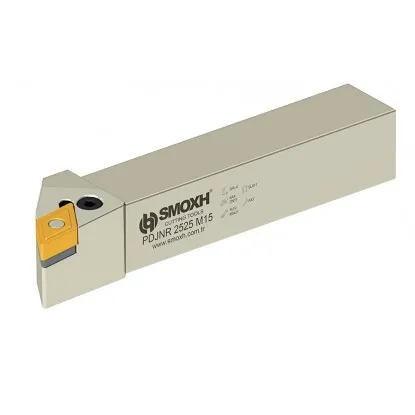

Turning tool PDJNR 25X25 15 Smoxh

Smoxh Smoxh
1656
Shank: 25x25 mm2 sizes of this turning tool
€55.03 tax inc.

Net price: €44.74

Instant Shipping
W magazynie: 3 pcs.
W magazynie: 3 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

CROSS SECTION 25×25 mm
LENGTH 150 mm
INSERT DNMG 1506rr
ANGLE κr 93°

Technical specifications of the PDJNR 25X25 15 turning tool

Technical data
ISO designation PDJNR 25X25 15
Shank height (h) 25 mm
Shank width (b) 25 mm
Overall length (L) 150 mm
Functional overhang (f) 32 mm
Entering angle (κr) 93°
Clearance angle 0° (negative)
Clamping system ISO — lever/pin (P)
Insert type DNMG 1506rr
Cutting direction R — right-hand (L version available)
Manufacturer Smoxh

PDJNR 25X25 15 turning tool – for longitudinal turning with light facing

Indexable turning tool 25×25 mm for a DNMG insert

Turning tool PDJNR 25X25 15 is an indexable turning tool designed for external turning on conventional and CNC lathes. The shank, with a cross section of 25×25 mm and a length of 150 mm, provides the rigidity required for industrial machining. The geometry with an entering angle of 93° allows turning along the wall with simultaneous light facing.

In the lever clamping system (P), the lever presses the DNMG 1506rr insert against the pocket walls through its hole. The negative geometry of the 55° diamond insert with 4 cutting edges is well suited to roughing and medium machining, providing high cutting edge strength and cost efficiency thanks to its double-sided design. The turning tool is compatible with DNMG 15 inserts in various carbide grades — select the grade to match the workpiece material.

Decoding the PDJNR designation of the PDJNR 25X25 15 turning tool

What the individual letters in the ISO designation mean

Decoding the designation PDJNR
P
Lever clamping through the insert hole (P)
CLAMPING
Lever/pin (P)
Clamping through the insert hole — quick replacement
D
Insert shape: 55° rhombus (D)
INSERT SHAPE
55° rhombus 55°
DNMG insert — negative, double-sided, 4 edges (2 per side), good access
J
Entering angle κr 93°, top view of the tool head (J)
ENTERING ANGLE
κr = 93°
Longitudinal turning + light facing
N
Clearance angle 0°, negative insert (N)
CLEARANCE ANGLE
α = 0° (neg.)
Negative geometry — double-sided inserts, edges on both sides
R
Right-hand direction (R)
DIRECTION
Right-hand (R)
Feed to the left — from the tailstock toward the spindle
Shank: 25×25 mm · Insert: DNMG 1506rr

Typical applications of the PDJNR 25X25 15 turning tool

Cutting operations:

▸ Longitudinal turning — the 93° angle provides stable cutting along the workpiece axis with light facing
▸ Roughing and medium machining of steel and cast iron — negative DNMG geometry provides a stronger cutting edge and 2× as many edges
▸ Machining shafts and bushings — a general-purpose tool for external turning of rotational parts
▸ Taper turning — machining tapered surfaces on CNC and conventional lathes
▸ CNC production runs — quick insert replacement and repeatable positioning

Included

Package contents for PDJNR 25X25 15

Package contents:

✓ Tool body PDJNR 25X25 15 1 pcs
✓ Pin and clamping lever 1 pcs
✓ Hex key for insert replacement 1 pcs
✗ DNMG 1506rr cutting insert (sold separately) —

Compatible DNMG 1506rr insert

DNMG 1506rr

The cutting insert is not included in the set — it must be purchased separately. DNMG insert. Negative geometry means that the insert is double-sided and has 4 cutting edges, providing a stronger cutting edge and twice as many edges as a single-sided insert.

Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.

Insert installation and replacement for the PDJNR 25X25 15 turning tool

Instructions for lever clamping (P)

Insert replacement procedure step by step

1 Loosen the lever

Unscrew the lever screw 2-3 turns

2 Clean the insert seat

Remove chips and debris

3 Install the insert

Fit the hole over the pin

4 Tighten the lever

Torque 2.0–3.0 Nm

Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.

Checks before starting work:

▸ Tool overhang — do not exceed 1.5× the shank height without support
▸ Cutting edge height — set the cutting edge at spindle centerline height
▸ Insert seat condition — check that the contact surface is not damaged or worn
▸ Secure clamping — the insert must have no play in the seat
▸ Indexing — when an edge wears out, rotate the insert to a fresh edge (4 edges in total)

Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.

Frequently asked questions — PDJNR 25X25 15

This tool accepts inserts DNMG 1506rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.

The entering angle of 93° provides stable longitudinal turning with light facing.

The DNMG insert has negative geometry (clearance angle 0°), which means it is double-sided with 4 cutting edges. When one edge wears out, rotate or flip the insert to use the next edge — this significantly reduces tooling cost per part.

Product accessories

Reviews

No customer reviews for the moment.

Add a review about the product

Turning tool PDJNR 25X25 15 Smoxh

Turning tool PDJNR 25X25 15 Smoxh

Shipping

All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE

Courier GLS Przelew24 / Prepayment 14,76 zł gross Delivery time 1 working day
Courier GLS Cash on delivery 17,26 zł gross Lead time 1 working day
