Description
Technical data of thread milling cutter M6 - stroke 1 mm
| Technical data | |
|---|---|
| Thread pitch | P-1 mm |
| Working diameter d1 | 8 mm |
| Shank diameter d2 | 8 mm |
| Working length l2 | 20 mm |
| Number of blade grooves Z | 3 |
| Overall length L | 50 mm |
Technical data of M6 thread milling cutter - pitch 1 mm External

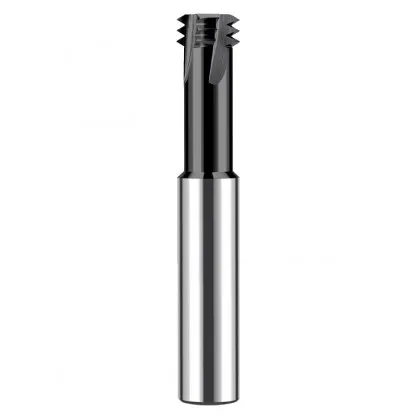

Thread milling cutterM6 P-1 mm Fi 8 mm 60 HRC is a precision tool made of monolithic tungsten carbide (VHM), designed for milling metric threads with a pitch of 1 mm and an outline angle of 60°. The TiAlN coating provides high resistance to abrasion, oxidation and heat, resulting in longer tool life and stable machining quality even under demanding production conditions.
The 8mm working diameter provides excellent rigidity and stability in the cutting process, minimizing the risk of vibration and improving thread surface quality. The M6 thread milling cutter works well in through-holes and blind holes and can be used in both CNC machining centers and conventional milling machines.
- M6 metric thread - pitch 1 mm, outline angle 60°.
- TiAlN coating - increased resistance to wear and high temperature work.
- VHM material - monolithic carbide with a hardness of 60 HRC.
- Diameter 8 mm - greater rigidity and stability in machining.
- Wide application - structural steel, stainless steel, cast iron, hard-to-machine materials.
Thread milling cutter 1 mm is a durable and reliable tool that provides reproducible thread quality in industrial and workshop conditions.
Frequently asked questions
1. What materials is this cutter suitable for?
The cutter is designed for machining structural steels, stainless steels, cast iron and hard-to-machine materials. With a core hardness of 60 HRC and TiAlN coating, it maintains high durability even under heavy use.
2. Can this cutter be used for threads other than M6?
Yes, the tool makes it possible to mill any metric thread with a pitch of 1 mm and an outline angle of 60 degrees - both regular and fine threads - depending on the diameter of the hole and with the appropriate operating parameters. This means flexible use in the production of different types of threads.
3. Is the cutter suitable for blind holes?
Yes, the geometry of the tool makes it possible to safely mill threads in both through-holes and blind holes. It is only important to select the correct depth of entry and exit of the material.
