Description
Technical data of the hand tapping machine M14x1,25
| Technical data | |
|---|---|
| Nominal diameter d1 mm | M14 |
| Thread pitch P mm | 1,25 mm |
| Overall length l1 | 90 mm |
| Length of working part l2 | 25 mm |
| Diameter of the shank part d2 | 11,2 mm |
| Size of square drive a | 9 mm |
| Threaded bore diameter | 12.8 mm |
| Thread angle G | 60 degrees |
| Thread standard | ISO DIN 13 |
| Thread tolerance | ISO2 6H |
M14x1.25 fine thread hand taps
M14x1.25 ISO 529/3 6H HSSHand Taps are used for making M14 metric fine threads with a pitch of one and one-quarter millimeters in structural steels and metal alloys with strengths up to eight hundred mega pascals. A three-member system - ripper, intermediate, finisher - distributes torsional torque, ensuring smooth machining and maintaining a six H fit class.
Performance parameters: nominal diameter fourteen millimeters; pitch one and one-quarter millimeters; outline sixty degrees in accordance with ISO 68-1; bore tolerance class six H according to ISO 965; thread direction right; chip grooves straight to promote predictable chip evacuation. HSS ground version improves resistance to micro chipping and stabilizes edge sharpness. Work layout complies with ISO 529/3, and clear markings and organization of transitions are supported by the M14x1.25 Hand Tapping Set. Recommended drill bit for threads: twelve and seventy-five hundredths of a millimeter; using emulsion or active oil improves surface quality and extends blade life.
- Stable guidance - reduces torque fluctuations and the risk of chafing in through-holes and blind holes.
- Tool life - HSS high speed steel in a precision grind slows wear and keeps roughness low.
- Grade 6H accuracy - compliance with tolerance allows passing the pass/fail test.
- Process order - smooth operations and dimensional repeatability are supported by the M14x1.25 Hand Thread Set.
Meeting the requirements of ISO 529/3, ISO 68-1 and ISO 965 guarantees compliance with inspection apparatus, stable coil profile and predictable results in unit and short-run production.

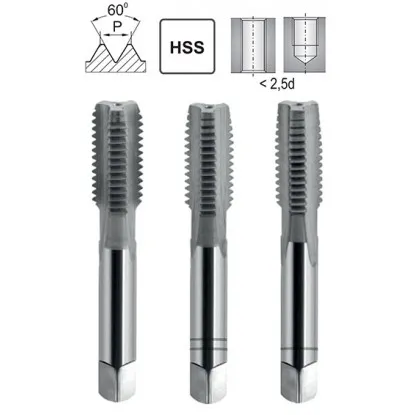

M14x1.25 thread cutting stages in a 3-piece set: ripper, intermediate and finisher
Frequently asked questions
1. How many parts does the M14x1.25 ISO 529/3 hand tapping set consist of?
The set contains three threaders - a nipper, intermediate and finisher - which, when used consecutively, allow very accurate threading.
2. Can the M14x1.25 ISO 529/3 hand taps be used in blind holes?
Yes, the set is designed to work in both through-holes and blind holes.
3. What materials can be threaded with a set of M14x1.25 ISO 529/3 taps?
HSS M14x1.25 ISO 529/3 threaders work well in machining low-carbon steel, aluminum, brass and other easily machinable metals.
