Description
Technical data of long cutter for aluminum 4 mm VHM
| Technical data | |
|---|---|
| Working diameter d1 | 4 mm |
| Shank diameter d2 | 4 mm |
| Length of working part l2 | 30 mm |
| Overall length l1 | 100 mm |
| Number of blades | 3 |
Cutting parameters of long milling cutter for aluminum fi 4 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| N | Aluminium | 160-320 | 0,045-0,059 |

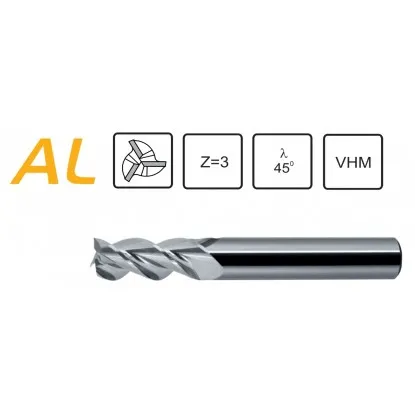

Long 4 mm VHM carbide aluminum cutter
Carbide end mill long the 4 mm Z-3 VHM is a slender 4 mm diameter solid carbide (VHM) cutter with three cutting edges, optimized for high cutting speeds in aluminum alloys (2xxx, 5xxx, 6xxx, 7xxx series), as well as copper and brass. The long overhang facilitates access to deep pockets and narrow grooves, while the polished chip grooves and positive geometry reduce edge build-up and improve chip evacuation. In CNC applications carbide end mill aluminium it performs well in contouring, pocket machining and face finishing with controlled roughness.
The Z-3 configuration allows higher feeds per tooth than double-edged solutions while maintaining surface quality. The VHM execution ensures rigidity and edge durability, while the slender shank - with correct clamping and entry strategy - minimizes the risk of vibration. In practice, the Z-3 carbide cutter guarantees predictable chip shape and stable machining in non-ferrous materials.
Benefits
- Long overhang - collision-free access to deep pockets and narrow geometries while maintaining dimensional accuracy.
- Z-3 for aluminum - better chip evacuation and higher feed per tooth with stable surface roughness.
- Anti-stick geometry - polished grooves and sharp positive angles reduce sticking and improve process stability.
- VHM rigidity and durability - solid carbide reduces deflection of the slender shank and promotes dimensional repeatability.
As a precision VHM 4 mm long version cutter, the Z-3 is suitable for profiling, finishing and contouring in aluminum and other non-ferrous materials when clean pocket bottoms and process repeatability are key.
