Description
| Technical Data | |
|---|---|
| Type | 9833 |
| Size | ER 40 |
| Standard | DIN 6499 (ISO 15488) |
| DIN designation | D40 |
| Outside Diameter D | 63 mm |
| Height H | 25.5 mm |
| Thread | M50×1.5 |
| Collet Clamping Range | 3 – 26 mm |
| Tightening Torque | 110 – 140 Nm |

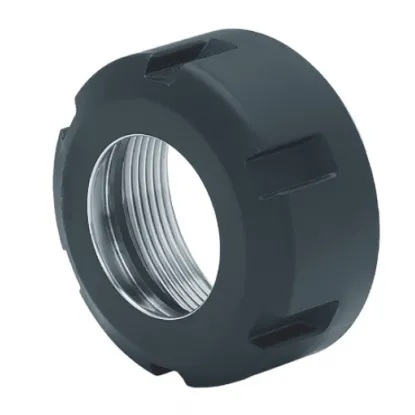

ER 40 nut – for a DIN 6499 collet chuck for milling cutters and drills
The type 9833 ER 40 nut is designed for precise clamping of tools with large shank diameters in collet chucks. Hardened steel construction with a hardness of 45-50 HRC ensures dimensional stability and resistance to repeated tightening at torques of up to 140 Nm. The M50×1.5 thread conforming to DIN 6499 (ISO 15488) ensures full compatibility with ER 40 chucks and collets with a clamping range of 3 to 26 mm. The outside diameter of 63 mm and height of 25.5 mm correspond to the D40 designation and fit all ISO-standard ER 40 chucks.
Technical specifications of the ER 40 nut
- Secure clamping of large tools thanks to the M50×1.5 thread of class 6H, which withstands the axial and radial loads typical of heavy machining
- Resistance to wear and deformation provided by through-hardening the steel to 45-50 HRC, resulting in a service life of thousands of tool change cycles
- DIN 6499 (ISO 15488) standard ensuring interchangeability of the nut with ER 40 chucks from all manufacturers using the international collet clamping standard
- The ER 40 collet clamping range of 3 to 26 mm covers the shank diameters of end mills, large-diameter drills, and special roughing tools
- The design with face slots for an ER 40 wrench or hook spanner allows quick, safe tool changes directly on the machine spindle
- The black oxide finish provides corrosion protection in workshop environments exposed to emulsion coolants and cutting oils
The ER 40 nut is used in toolrooms, CNC machining centers, and conventional milling machines equipped with large collet chucks. Tightening to 110-140 Nm using a torque wrench achieves radial runout below 0.015 mm. Regular removal of chip residue from the thread and internal taper, along with lubrication every 200-300 cycles, extends the service life of the entire ER clamping system.
Frequently asked questions
The ER 40 nut works with collets ranging from 3 to 26 mm. The maximum tool shank diameter is therefore 26 mm, covering most end mills and drills used in industrial machining.
The correct tightening torque for the ER 40 nut is 110-140 Nm. A torque wrench must be used to avoid deforming the collet and maintain radial runout below 0.015 mm.
A dedicated ER 40 wrench or a hook spanner matching the face slots is recommended for tightening the ER 40 nut. Using pliers or general-purpose wrenches risks damaging the slots and preventing proper tightening.
