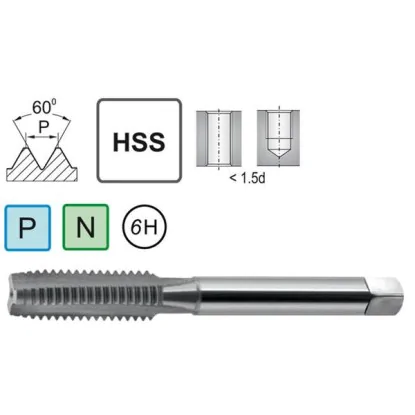

Machine tap M10x0.75 DIN 374 A HSS
FWP FWP
0000008153
€5.83 tax inc.
Net price: €4.74
Instant Shipping
W magazynie: 10-100 szt.
Description
Material HSS
Thread size M10x0.75
ChamferA (6÷8) threads
Standard DIN 374
Technical data for the M10x0.75 machine tap
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M10x0.75 |
| Thread Pitch P | 0.75 mm |
| Overall Length l1 | 90 mm |
| Flute Length l2 | 18 mm |
| Shank Diameter d2 | 7 mm |
| Square Drive Size a | 5.5 mm |
| Tap Drill Diameter | 9.2 mm |
| Chamfer | A (6÷8) P |
| Thread tolerance | 6H |
M10x0.75 universal machine tap – HSS DIN 374
The M10x0.75 machine tap is a professional tool for cutting internal threads in general-purpose holes. Made of HSS high-speed steel with a hardness of 62-64 HRC, it provides optimum cutting-edge life and stable operation at temperatures up to 550°C. Tolerance 6H in accordance with DIN 374.
Key advantages of the M10x0.75 machine tap
- HSS material – hardness of 62-64 HRC and heat resistance up to 550°C
- Form A chamfer (6÷8 threads) – optimal for both through holes and blind holes
- Tolerance 6H – standard accuracy grade for bolted joints
- Compliance with DIN 374 – verified dimensional quality
The M10x0.75 machine tap is used in toolrooms and maintenance departments. The recommended tap drill diameter is 9.2 mm.
Cutting data for the M10x0.75 machine tap
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 159-636 | 119-477 |
| MStainless steel | 5-10 | 159-318 | 119-238 |
| KCast iron | 5-15 | 159-477 | 119-357 |
| NAluminum | 10-25 | 318-795 | 238-596 |
Thread preparation M10x0.75 in a through hole or blind hole
1 Spot drilling
NC spotting drill 90°
2 Drilling
Ø 9.2 mm
3 Tapping
M10x0.75
✓ Done!
Tolerance 6H
Standard: DIN 374 | Chamfer: A (straight) | Application: through holes and blind holes
Tolerance 6H — metric thread tolerance classes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
