Description
Technical data of the manual threader 2 1/2 inch G
| Technical data | ||
|---|---|---|
| Nominal diameter d1 inch/mm | G 2 1/2 inch | 75.18 mm |
| Thread pitch P inch/mm | 11 turns per inch | 2.309 mm |
| Overall length l1 | 160 mm | |
| Length of working part l2 | 40 mm | |
| Diameter of the shank part d2 | 50 mm | |
| Size of square drive a | 39 mm | |
| Threaded bore diameter | 72.54 mm | |
| Threaded hole diameter C | (2÷3) P | |
| Thread angle G | 55 degrees | |
| Thread standard | BSP DIN ISO 228 | |

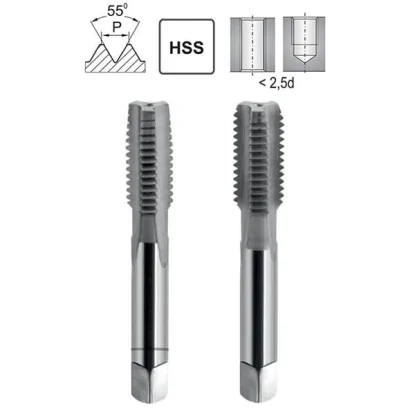

Hand Tap 2 1/2 inch G for pipes
Hand Tap 2 1/2 inch G DIN 5157/2 HSS is a professional 2-piece set (ripper + finisher), designed for manual cutting of cylindrical G-type(BSP - British Standard Pipe) pipe threads with a profile angle of 55 degrees. The tool is made of high-quality HSS high-speed steel, which provides high wear resistance and long service life even in demanding industrial conditions.
The G 2 1/2 inch thread has an external diameter of 75.184 mm, in accordance with ISO 228-1. Thanks to the use of geometry in accordance with DIN 5157/2, the tapping tool allows for gradual, safe and precise threading in two stages - with the use of a peeler threader and a finisher.
The 2 1/2-inch G pipe threader is a reliable tool for installers, locksmiths and service workers who make threaded connections in industrial, gas, water supply and process installations.
- 2-piece set (DIN 5157/2) - ripper and finisher for precise hand threading.
- Thread 2 1/2 inch G - external diameter 75.184 mm (according to ISO 228-1).
- Thread profile of 55 degrees - in accordance with the BSP standard, ensures tightness and installation compatibility.
- Material: high-speed steel HSS - durable, wear-resistant and designed to work in steel, brass and plastics.
- Professional use - in large installation and industrial systems.
Hand Tap 2 1/2 inch G DIN 5157/2 HSS is a tool designed for demanding users who need a precise and durable solution for large diameter BSP threads.
Thread cutting stages for G 2 1/2 inch threads in 2-piece set: ripper and finisher
Frequently asked questions
1. Why is the G 2 1/2 inch thread cutter 75.18 mm in diameter? G 2 1/2 inch how much is mm? And how many cm is it?
The question "G 2 1/2 inch how many mm" or "G 2 1/2 inch how many cm" often arises when selecting tools for pipe threading. Contrary to appearances, the value of 2 1/2 inches(that is, 75.18 mm or 7.52 cm) does not mean the diameter of the thread, but the nominal size of the pipe to which the thread fits. In practice, a 2 1/2-inch G thread has an outside diameter of 75.18 mm, because G (BSP) pipe threads are designed for pipes with thick walls.
For this reason, always check the thread diameter value in the technical data, and do not convert inches directly to millimeters. In the BSP system, the thread size is a result of the design of the entire installation, not just the nominal dimension.
2. Is the G thread a tapered thread and does it provide tightness?
No. G thread (BSP) is a cylindrical pipe thread, which means that its diameter is constant along its entire length. Unlike tapered threads (designated as R or BSPT), G thread connections are not self-sealing. This means that a G thread does not provide a seal by itself - it requires an additional sealing element, such as a flat gasket, O-ring or plastic washer. Such a sealing method is commonly used in hydraulic, pneumatic and industrial installations.
