Description
Technical data of extra long drill fi 13
| Technical data | |
|---|---|
| Working diameter of drill d | fi 13 mm |
| Overall length l1 | 315 mm |
| Length of working part l2 | 480 mm |
Cutting parameters of extra long drill fi 13 mm HSS NWKp
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Revolutions n [obr/min] | Total feed rate [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 12-21 | 0,12 | 294 | 35 |
| K | Cast iron | 10-15 | 0,12 | 245 | 29 |
| Copper and alloys | 12-25 | 0,16 | 294 | 47 |
May be useful
Cutting parameters calculator
Extra-long twist drills with cylindrical shank for steel and cast iron for general use. Recommended use is for making deep holes, or when greater tool overhang is required. Use in: carbon steel, auto steel, structural steel, gray iron, aluminum bronze, new silver Cu Zn Ni alloy, gray iron, tin-zinc bronze, electronic copper malleable brass. High-performance drilling; precision, heavy duty.
Extra long drill bit for metal 13
Metal fi 13 twist extra long drill bit with cylindrical shank for steel and cast iron for general use. The recommended use is for making deep holes, or when greater tool overhang is required. Application in: carbon steel, auto steel, structural steel, gray iron, aluminum bronze, new silver Cu Zn Ni alloy, gray iron, tin-zinc bronze, electronic copper malleable brass. It is acceptable to drill in alloy steel which has a tensile limit Rm 1200 N/mm2, zinc alloy, zinc, malleable cast iron
High-quality ground drill typeNWKp with cylindrical shank, according to DIN 1869. It is an extra-long drill with a diameter of 13 mm and length ranges of 480/315. It has an angle of 118 degrees, suitable for drilling proper without pre-drilling and scoring. The long metal drill fi 13 NWKp is suitable for drilling very deep holes, including in concave profiles. The drills are manufactured from modern HSS high-speed steel. This is a steel with exceptional cutting properties. It is distinguished by above-average hardness, durability and resistance to abrasion under high temperatures - up to 600 degrees C. HSS NWKp drills are characterized by a longer service life and the ability to cut very hard and hard-to-machine materials. The drills can be used for drilling holes in parts made of unalloyed steels, metals, nonferrous metals, metal alloys and others.
Product accessories
Metal drill bit 14 extra long 375/260 HSS DIN 1869
Reference: 0000003479 In stock < 10 items
€23.16
€28.48 brutto
Metal drill bit 12 extra long 295/205 HSS DIN 1869
Reference: 0000003979 In stock < 10 items
€14.47
€17.80 brutto
Metal drill bit 13 long 205/134 HSS DIN 340
Reference: 0255 In stock > 10 items
€6.58
€8.09 brutto
Metal drill bit 13 extra long 295/205 HSS DIN 1869
Reference: 10078 In stock < 10 items
€16.05
€19.74 brutto
Drill 13 extra long 375/260 HSS DIN 1869
Reference: 211365 In stock < 10 items
€21.84
€26.87 brutto
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |

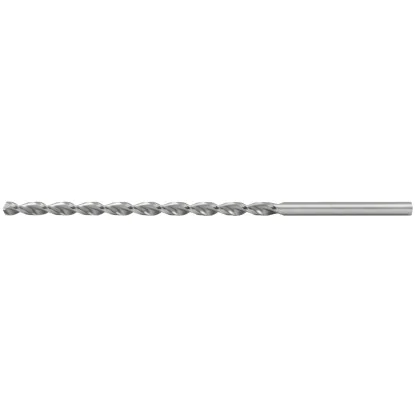

Drill 13 extra long 480/315 HSS DIN 1869 Podgląd zdjęć produktu
