NWKc Morse metal drill bits DIN 345

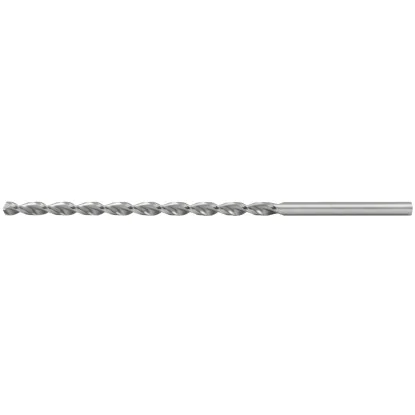

Drill 13 mm extra long - 375 mm / 260 mm HSS
search
  • Drill 13 mm extra long - 375 mm / 260 mm HSS
  • Drill 13 mm extra long - 375 mm / 260 mm HSS - nr. 1
Artykuły Techniczne

Drill 13 extra long 375/260 HSS DIN 1869

Artykuły Techniczne Artykuły Techniczne
211365
Diameter (mm): 1324 sizes of this drill
22,533,544,555,566,56,777,288,58,68,89101111,5121314
€26.87 tax inc.

Net price: €21.84

Instant Shipping
W magazynie: 3 pcs.
W magazynie: 3 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of extra long drill fi 13

Technical data
Working diameter of drill d fi 13 mm
Overall length l1 260 mm
Length of working part l2 375 mm

Cutting parameters of extra long drill fi 13 mm HSS NWKp

ISO symbolMaterialCutting speed Vc [m/min]Feed per revolution f [mm]Revolutions n [obr/min]Total feed rate [mm/min]
P Steel 12-21 0,12 294 35
K Cast iron 10-15 0,12 245 29
Copper and alloys 12-25 0,16 294 47

May be useful

Cutting parameters calculator

Extra-long twist drills with cylindrical shank for steel and cast iron for general use. Recommended use is for making deep holes, or when greater tool overhang is required. Use in: carbon steel, auto steel, structural steel, gray iron, aluminum bronze, new silver Cu Zn Ni alloy, gray iron, tin-zinc bronze, electronic copper malleable brass. High-performance drilling; precision, heavy duty.

Extra long drill bit for metal 13

Metal fi 13 twist extra long drill bit with cylindrical shank for steel and cast iron for general use. The recommended use is for making deep holes, or when greater tool overhang is required. Application in: carbon steel, automatic steel, structural steel, gray iron, aluminum bronze, new silver Cu Zn Ni alloy, gray iron, tin-zinc bronze, electronic copper malleable brass. It is acceptable to drill in alloy steel which has a tensile limit Rm 1200 N/mm2, zinc alloy, zinc, malleable cast iron

High-quality extra-long twist drill with cylindrical shank with a diameter of 13 mm and a length of 375/260, made according to the dimensional standard DIN 1869. It has a tip angle of 118 degrees and allows drilling proper without the need for pre-drilling and scoring. Long metal drill fi 13 is suitable for making very long (deep) holes and also for drilling in concave profiles. NWKp drills offered in our store are made of modern HSS (High Speed Steel). This is a steel characterized by exceptional cutting properties. Thanks to it, the drills allow a significant increase in drilling efficiency, by resisting the rapid temperatures created when drilling at high speed. The tools maintain high efficiency even at temperatures up to 600 degrees. They can be used in conventional drilling machines, milling machines and lathes, as well as modern CNC machines.
