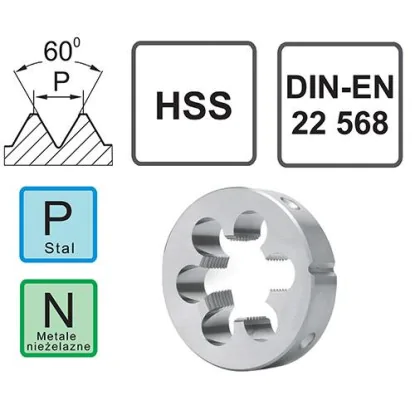

Die UNC No 6-32 2A HSS 800 DIN 22568

Technical data:

- notched thread d1 - No 6,

- number of turns per inch - 32,

- thread pitch P - 0.794 mm,

- thread diameter d1 - 3.505 mm,

- external diameter d2 - 20 mm,

- thickness h1 - 5 mm,

- number of chip holes - 3,

- required diameter of the shaft - 3,41 mm

Modern UNC 6 - 32 unified chisel, designed for cutting threads with normal UNC pitch. The angle is 60 degrees, the tolerance class of the made threads is 2A, the nut is 1.75 P. the chisels in the offer of our store are produced by the Polish company FANAR, which enjoys a good reputation among professionals around the world. The anneals unified in our store are resistant to harsh working conditions and resistant to potential mechanical damage. The anneals are characterized by increased hardness and durability. These features are owed to the properties of HSS 800 high speed steel, from which the tooling is made. Thanks to the HSS steel, the unified dies are suitable for manual and machine threading. They can be used for machining unalloyed steel, autistic steel, metals, non-ferrous metals, metal alloys and other hard materials. The blades of the dies are resistant to potential mechanical damage, such as fractures, cracks, chipping, chipping.
