Description

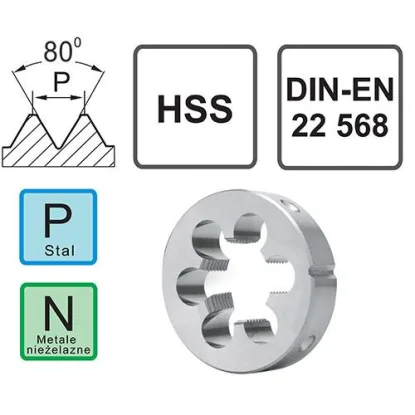

Technical data of Pg 36 armoured thread cutter
- cut thread d1 - Pg36
- thread pitch P - 16 turns per inch,
- external diameter d2 - 90 mm,
- thickness h1 - 22 mm,
- number of chip holes - 7,
- required diameter of the shaft - 46.85 mm
Threading machine Pg 36 for steel installation tubes DIN-40430
Round annealerPg 36 for cutting external threads on steel installation tubes. Thread diameter 36, nut 1,75P. In our store, we offer you Pg chisels made of special HSS (High Speed Steel) in accordance with the standards of the dimensional standard IDIN 22 568. It is a steel showing good mechanical properties at elevated temperatures (up to 600 degrees C). Thanks to it, the dies are characterized by high strength, hardness and good ductility. This type of dies Pg 36 are dedicated to both individual customers and large companies - for multi-batch production). The dies allow high-performance cutting, at high speeds. They also make it possible to significantly increase the precision of cutting and improve the quality of threaded surfaces. The blades of the dies are resistant to abrasion and other mechanical damage, which significantly extends the life of the tools.
Product accessories
Hand Tap NGSy Pg-36 DIN 40430/2 HSS
Reference: 0000006155 In stock < 10 items
€86.84
€106.82 brutto
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |
