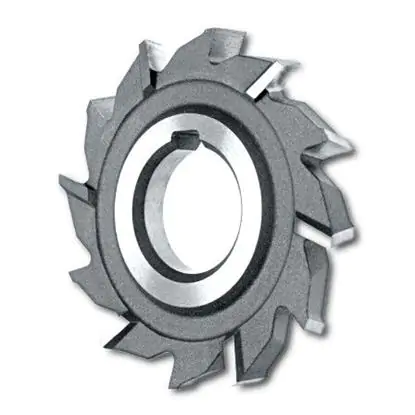

Side and face milling cutter 80X5 DIN 885 AN HSS

Technical data of disc cutters 80x5

- working diameter D - 80 mm,

- bore diameter d - 27 mm

- working width L - 5 mm

- number of blades Z - 14

Side and face milling cutter three-sided alternate bevel 80x5

Modern three-sided 80x5 alternately bevelled NFTb mounted disc milling cutter 80x5 in accordance with the dimensional standard DIN 885. It is a professional tool for milling shallow or narrow grooves and also for cutting metal parts. It is an AN - three-sided milling cutter with alternately oblique blades. The blades are located on the short cylindrical surface and also on both faces. It is designed to perform finishing and fine machining. In our store we offer you professional 80x15 mounted disc milling cutters made entirely of high-quality HSS high-speed steel. Thanks to its high technical parameters, they are designed for high-performance cutting even of very hard and hard-to-machine materials of the P1.2 - P1.3. class. They are distinguished by increased resistance to severe cutting conditions, as well as greater resistance to possible fractures, cracks, splits, chipping and other mechanical damage. The cutters are recommended for various types of conventional machine tools, as well as for modern CNC computer-controlled machine tools.
