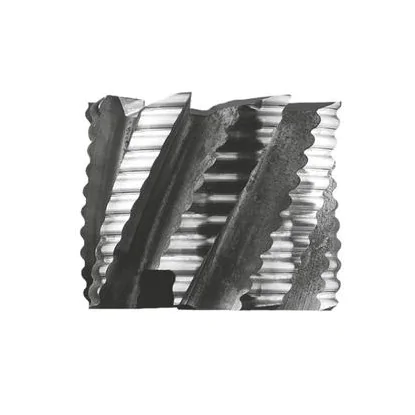

Shell end mill 100 DIN 1880 HSS odm.F

Technical data of face milling cutter 100

- working diameter d - 100 mm,

- bore diameter D - 32 mm,

- total height L - 50 mm,

- height l - 26 mm

- number of teeth Z - 10

Face milling cutter 100 for metal

Face milling cutter 100 with a chipbreaker. This milling cutter is one of the universal tools for machining face and side surfaces, indentations and undercuts, etc. It is designed for roughing and medium fine machining. It is recommended to be used for materials giving a short chip such as cast steels, cast irons and nickel and titanium alloys. A milling shank is required for this type of cutter. Possible use for machining aluminum except for aluminum with Si> 10% content.

Professional face milling cutter, type NFCa, dimension 100, variety F. Made according to the dimensional standard DIN 1880. Suitable for machining face planes, side planes, notches and undercuts. It is a right-handed milling cutter, and its blades are located in both the face and side parts. This type of face milling cutters are dedicated to both individual customers and large industrial plants carrying out multi-batch processing. The milling cutters in our offer are produced from modern HSS (High Speed Steel). They are distinguished by increased strength to withstand very difficult working conditions, including high temperatures generated during high-speed machining. Their blades are resistant to abrasion and also to other mechanical damage caused during operation. Cylindrical milling cutters 100 recommended for conventional and numerical control machine tools.
