Description
Technical data of CSRNR 20x20 folding knife
- width of handle H - 20 mm,
- height of the handle B - 20 mm,
- total length L - 125 mm,
- working height F - 25 mm,

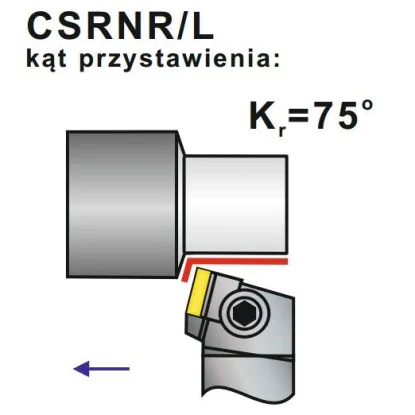

- attachment angle - 75 deg.
- length E - 26 mm
Lathe knife CSRNR 20x20-12
High quality folding turning knife CSRNR 20x20-12 -Fixing SYSTEM "C" - positive or negative geometry of the knives.
Interchangeable inserts one-sided (insert angle equal to 11°) or two-sided (insert angle equal to 0°), square and triangular, with a flat contact surface, fixed on the contact surface with a screw head that presses the insert through a carbide chipbreaker laid on it. CSRNR 20x20-12 knives with inserts clamped in the "C" system are used for roughing (negative geometry) and finishing (positive geometry) of external surfaces and holes (positive geometry).
The "C" system is characterized by easy insert change and good repeatability of the blade position. The superimposed chipbreaker makes clamping more difficult, but offers the possibility to adjust the position of the chipbreaker edge.
* The cutting insert shown in the picture is not included in the turning knife, it must be purchased separately
Product accessories
Carbide insert SNMG 120408 MA H6310 Horn
Reference: 0000002922 In stock > 10 items
€5.26
€6.47 brutto
